Start » Products » Winches » Hydraulic Winches » Hydraulic Hoist Winches

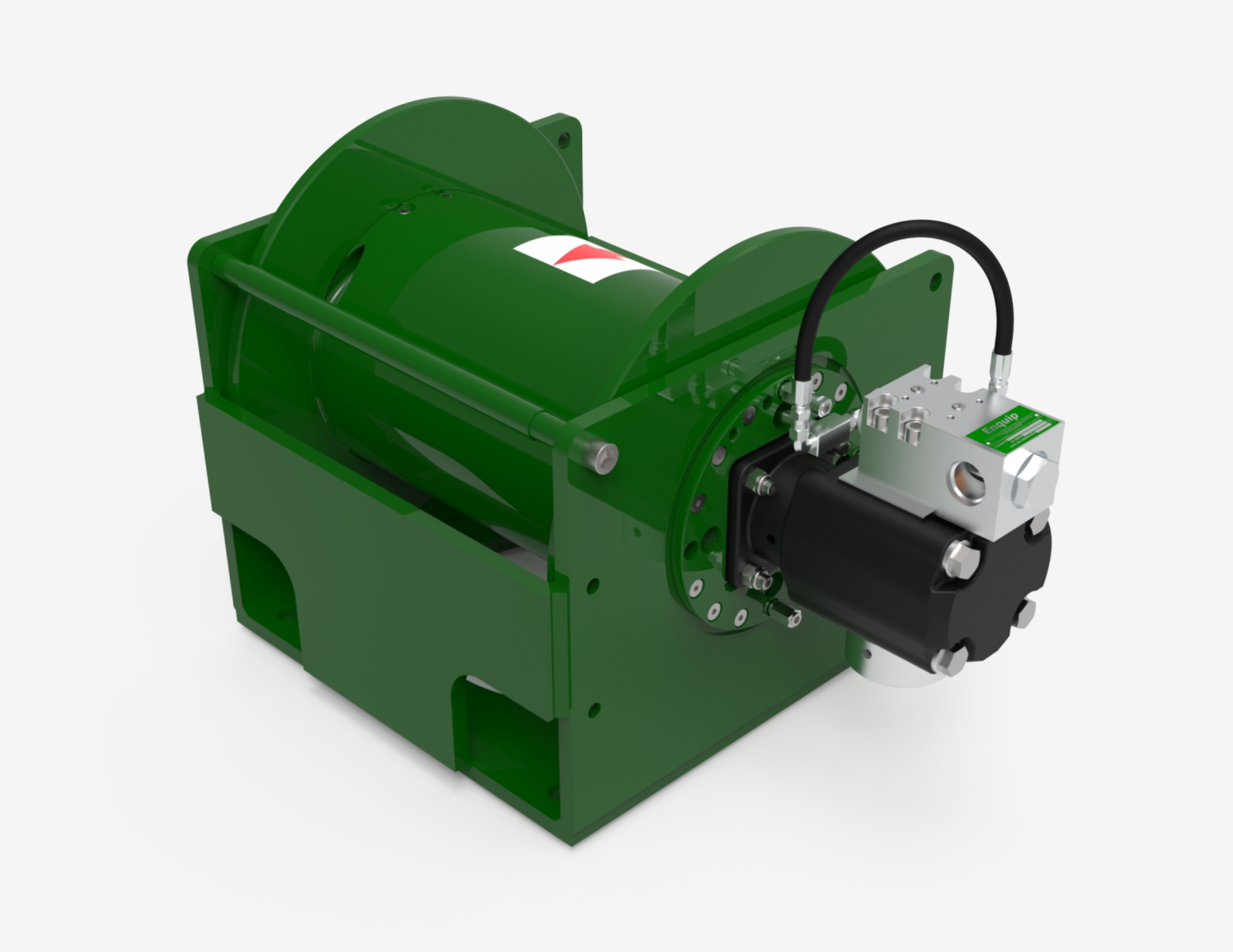

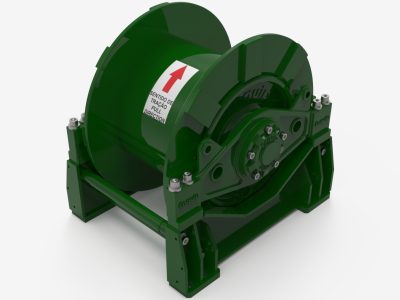

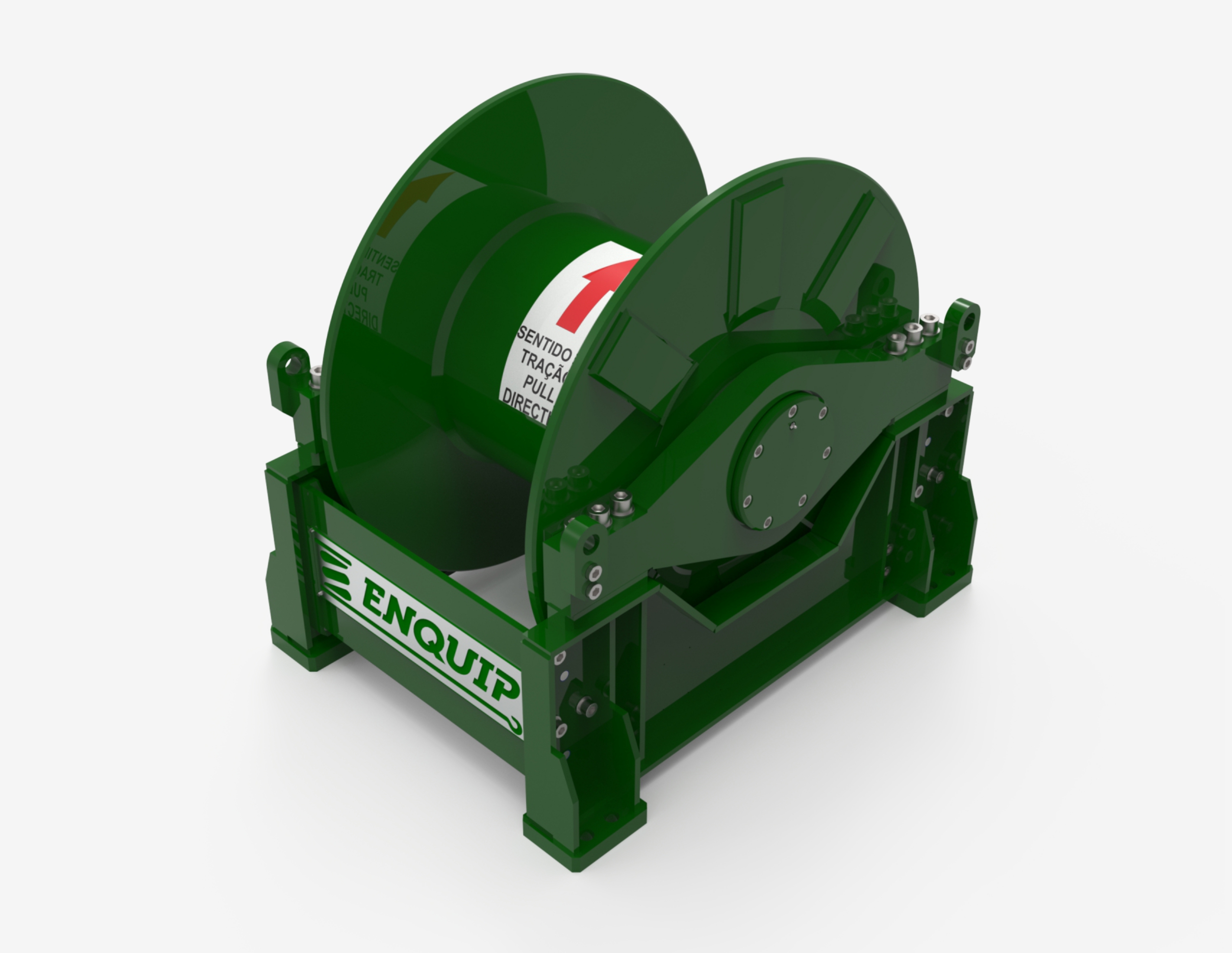

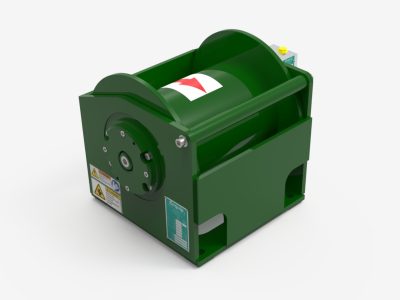

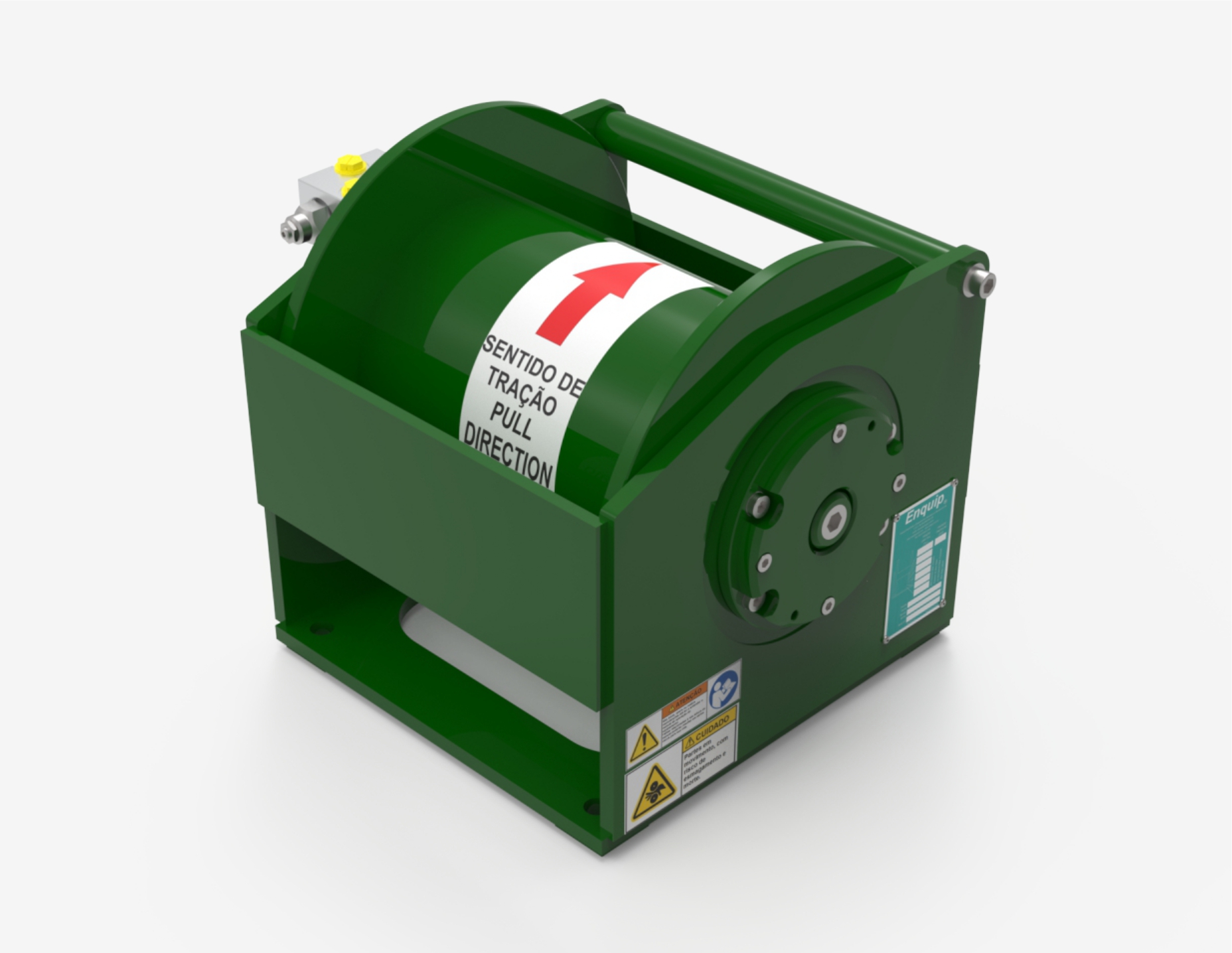

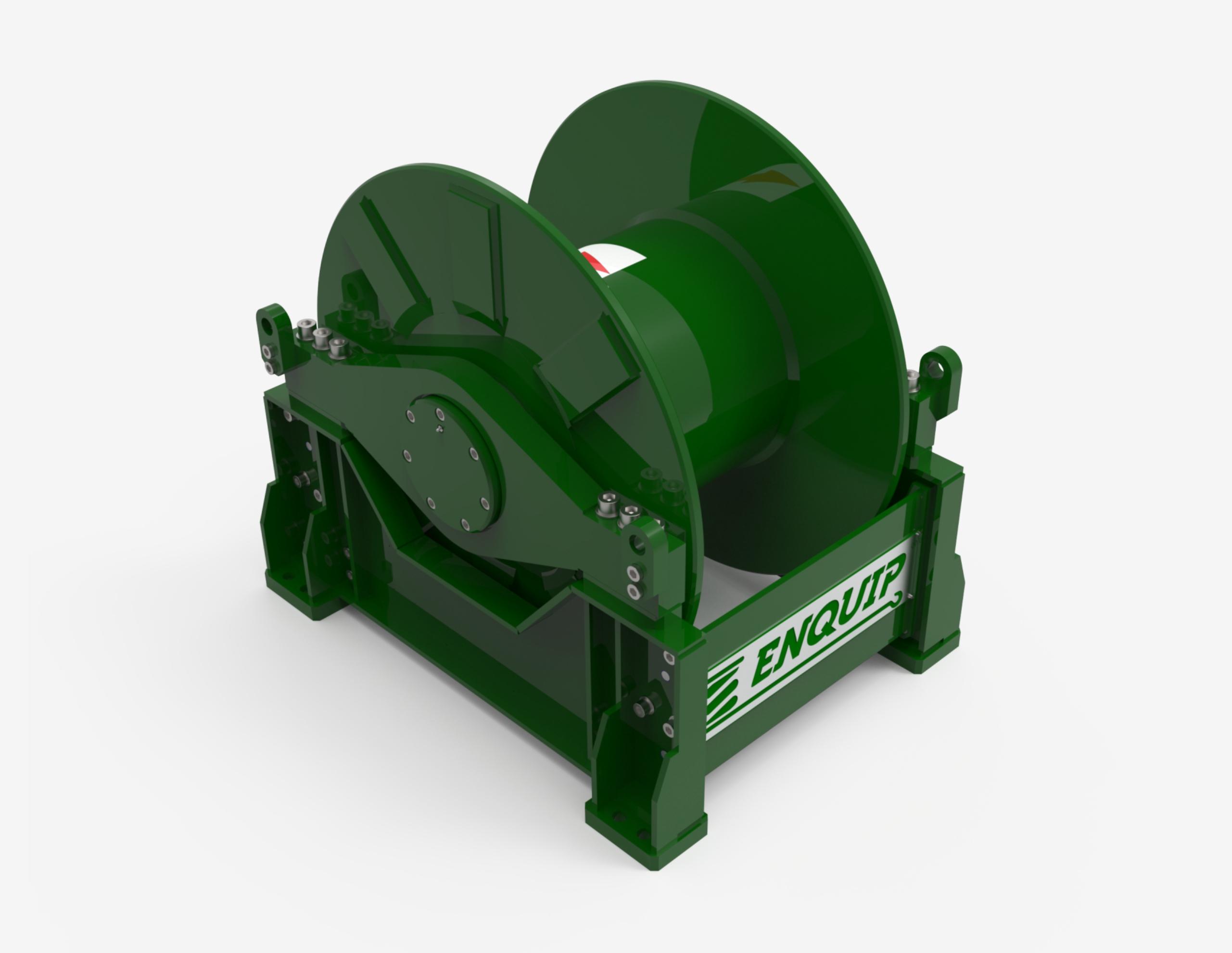

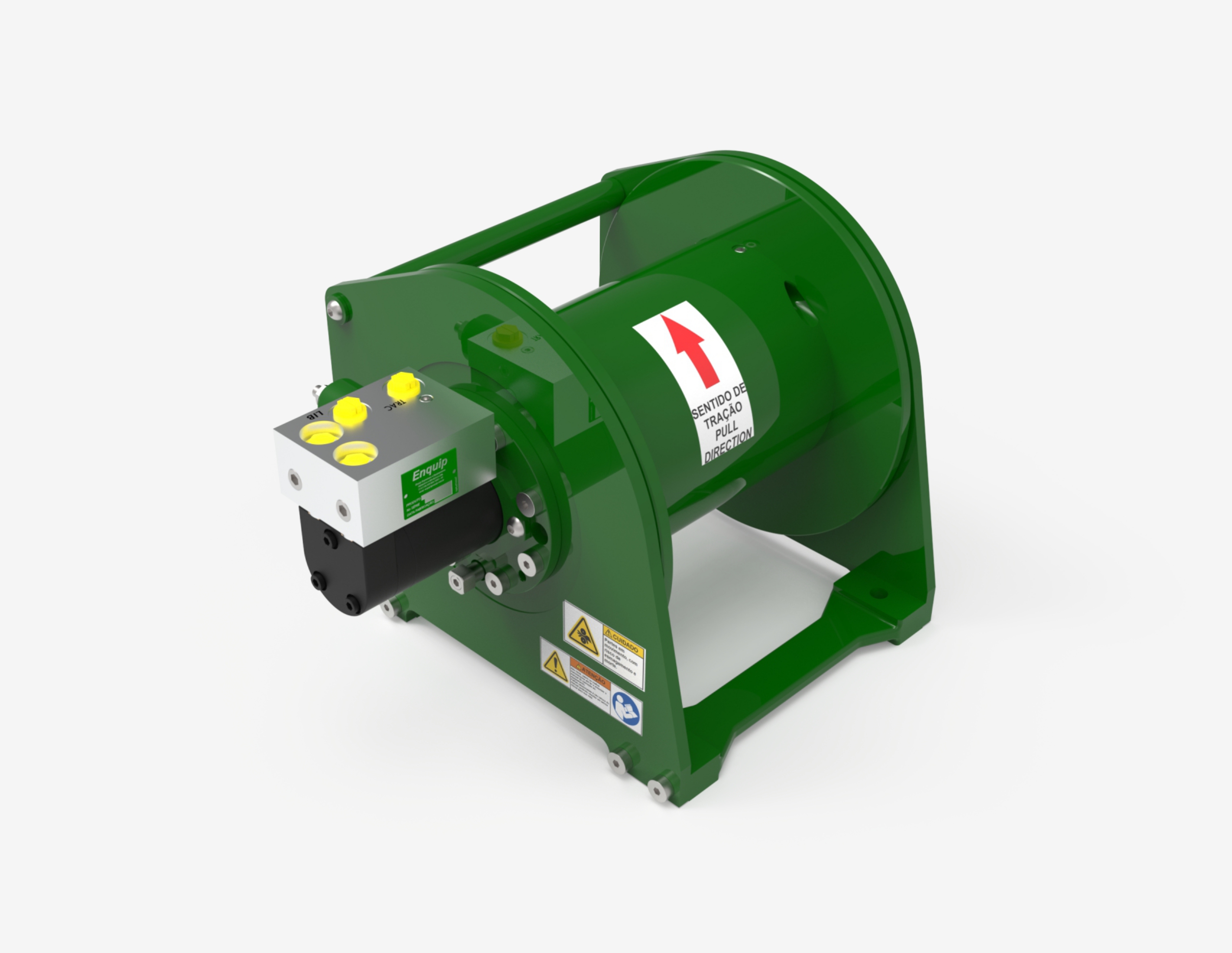

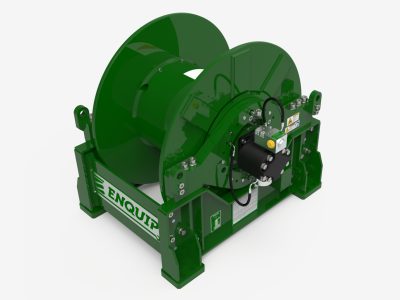

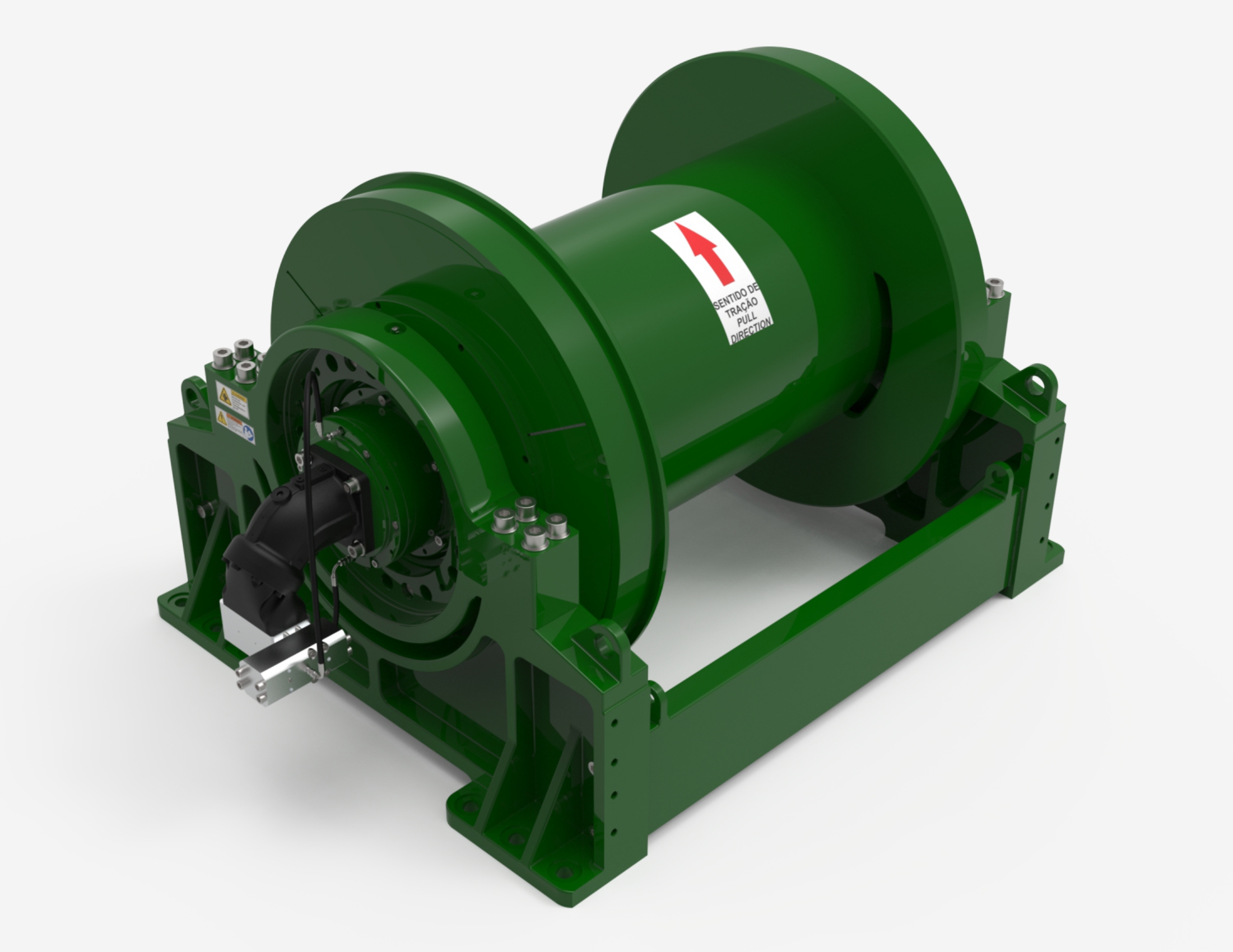

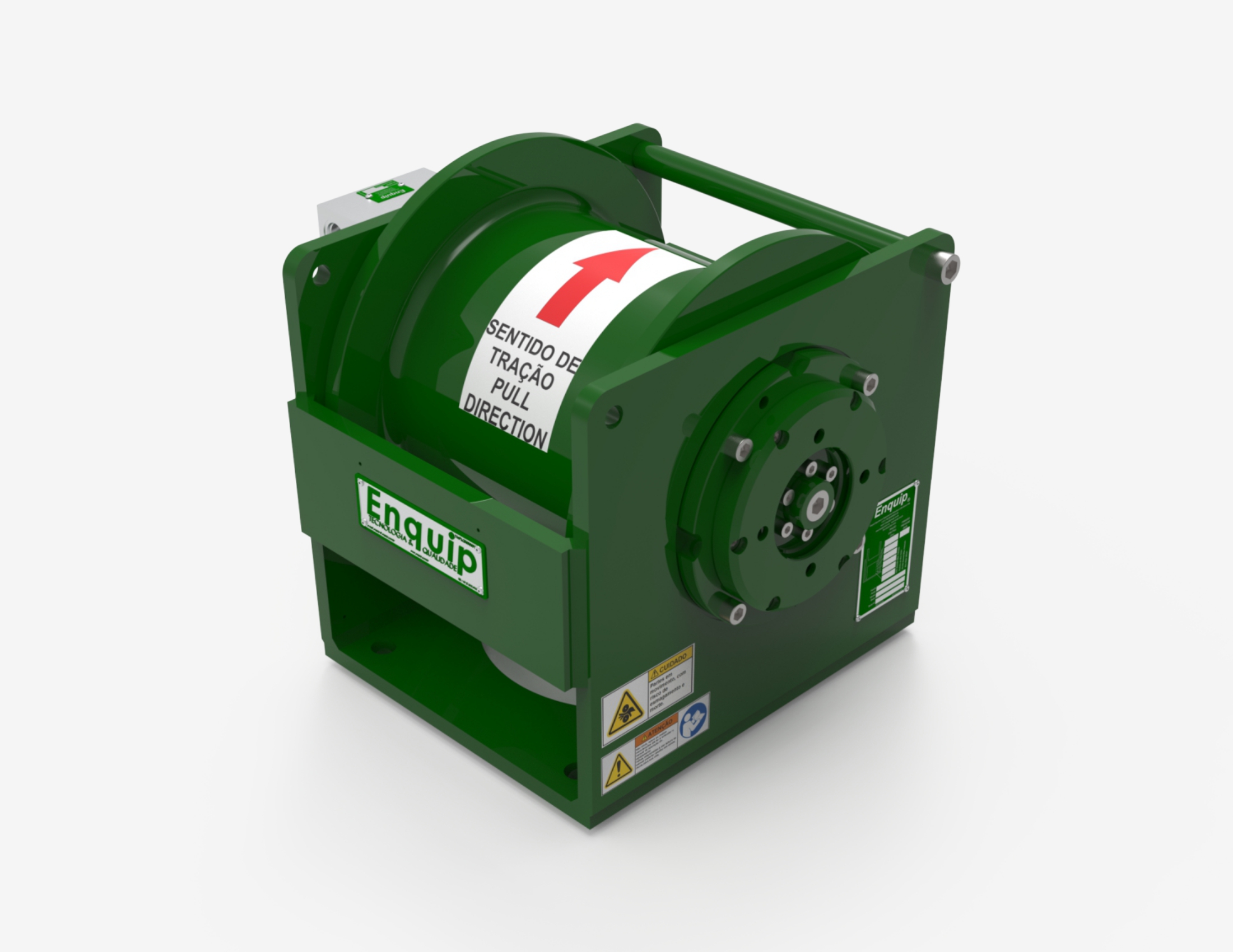

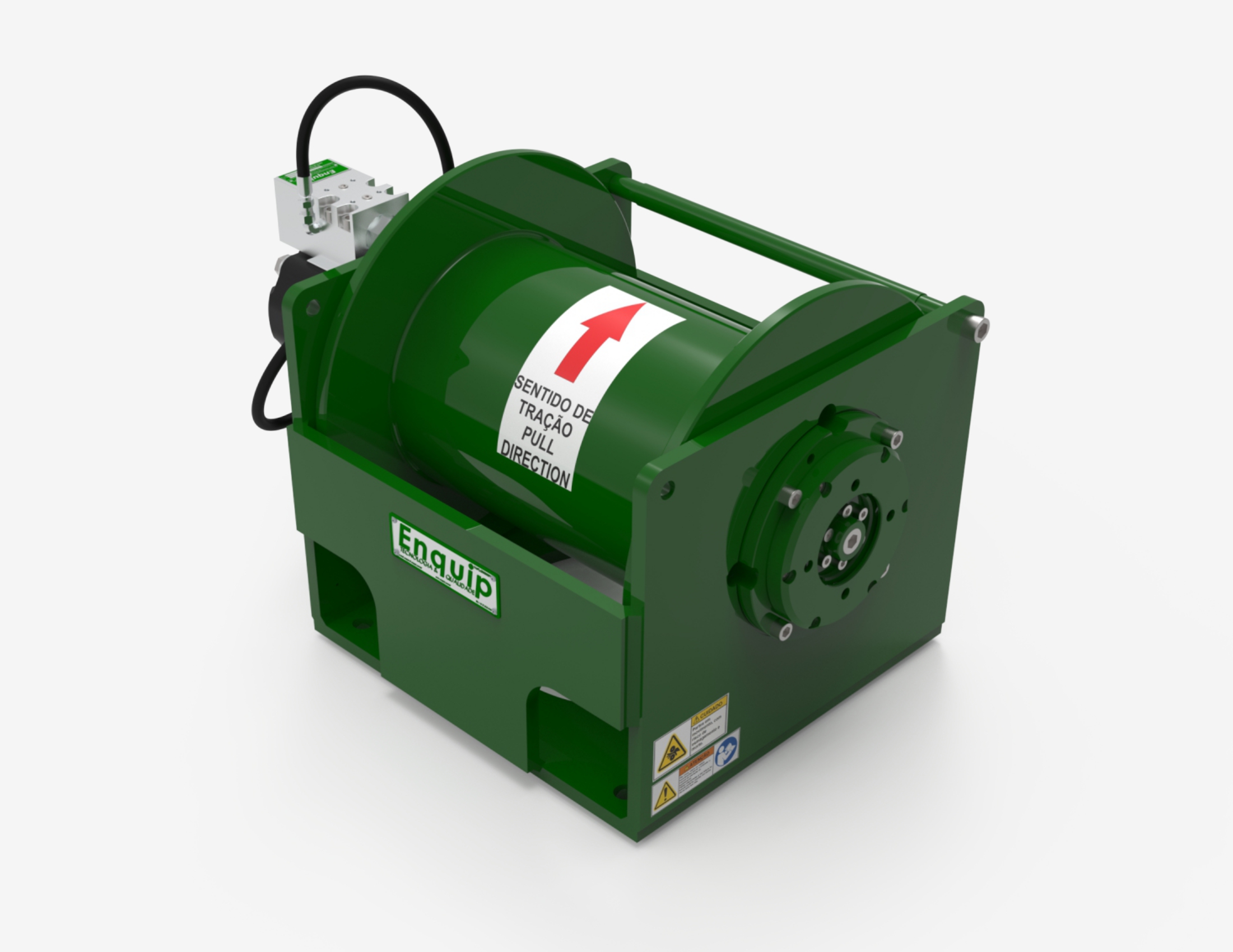

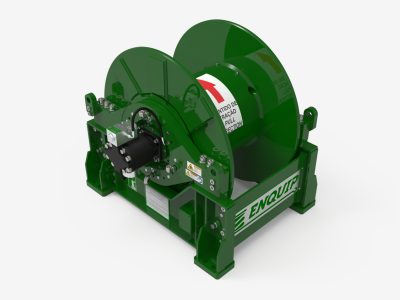

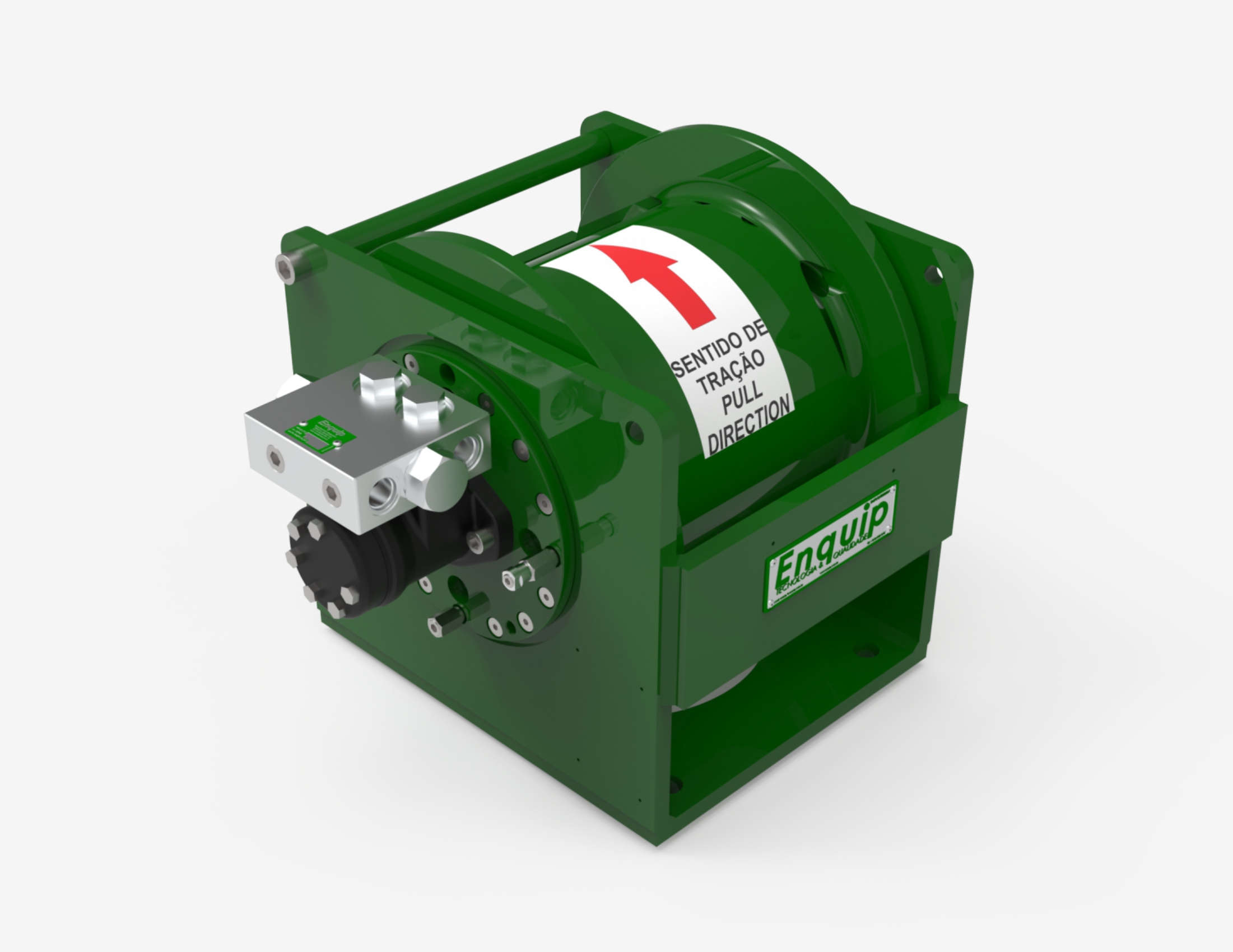

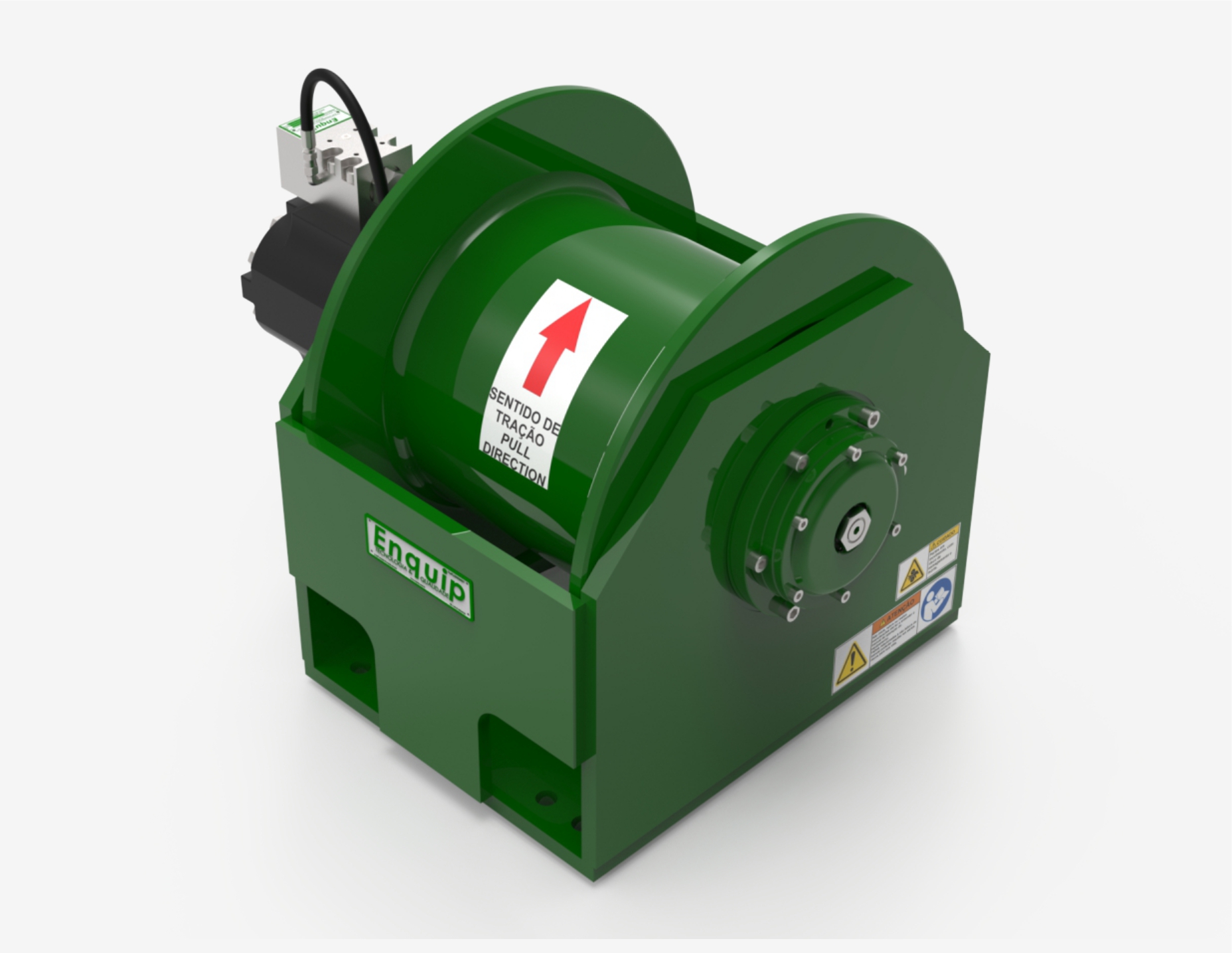

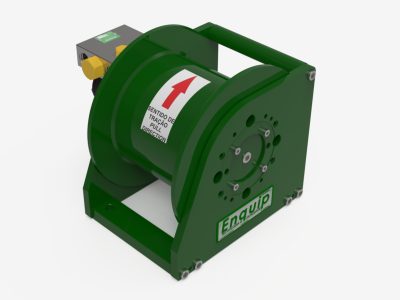

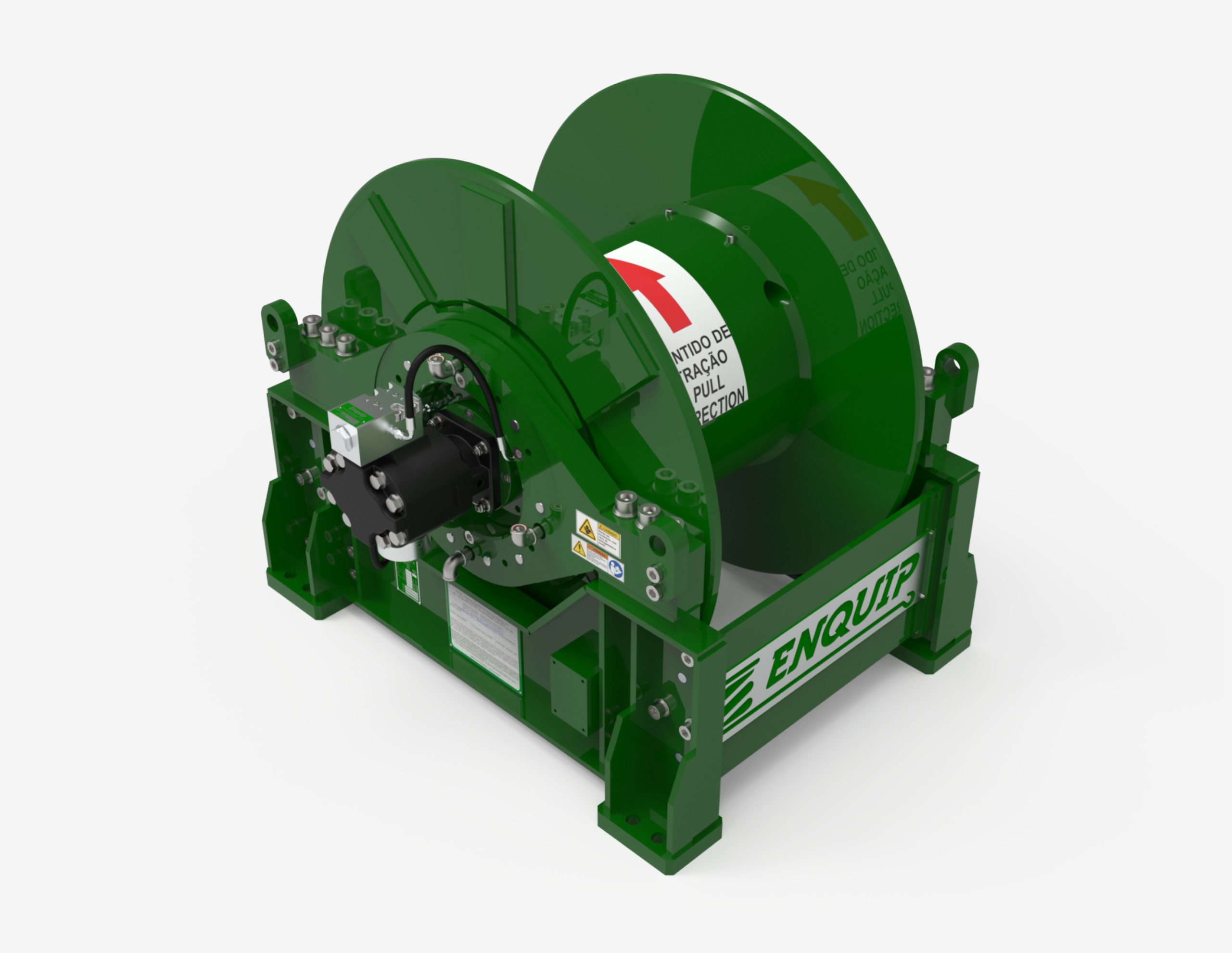

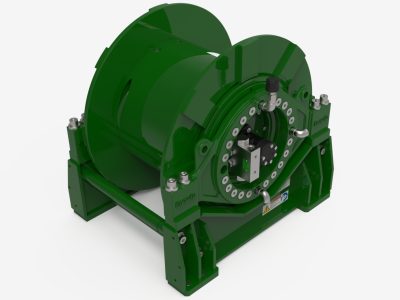

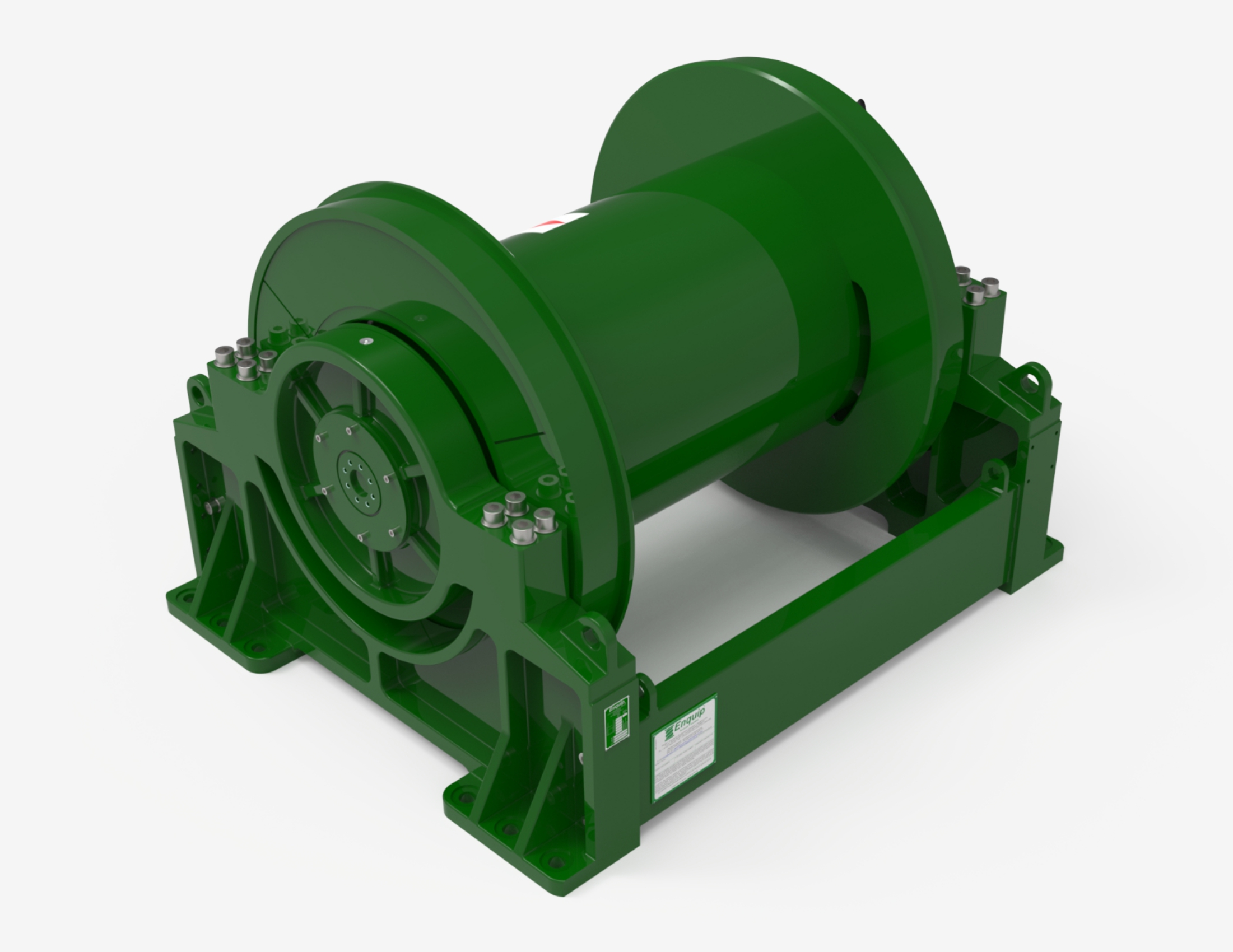

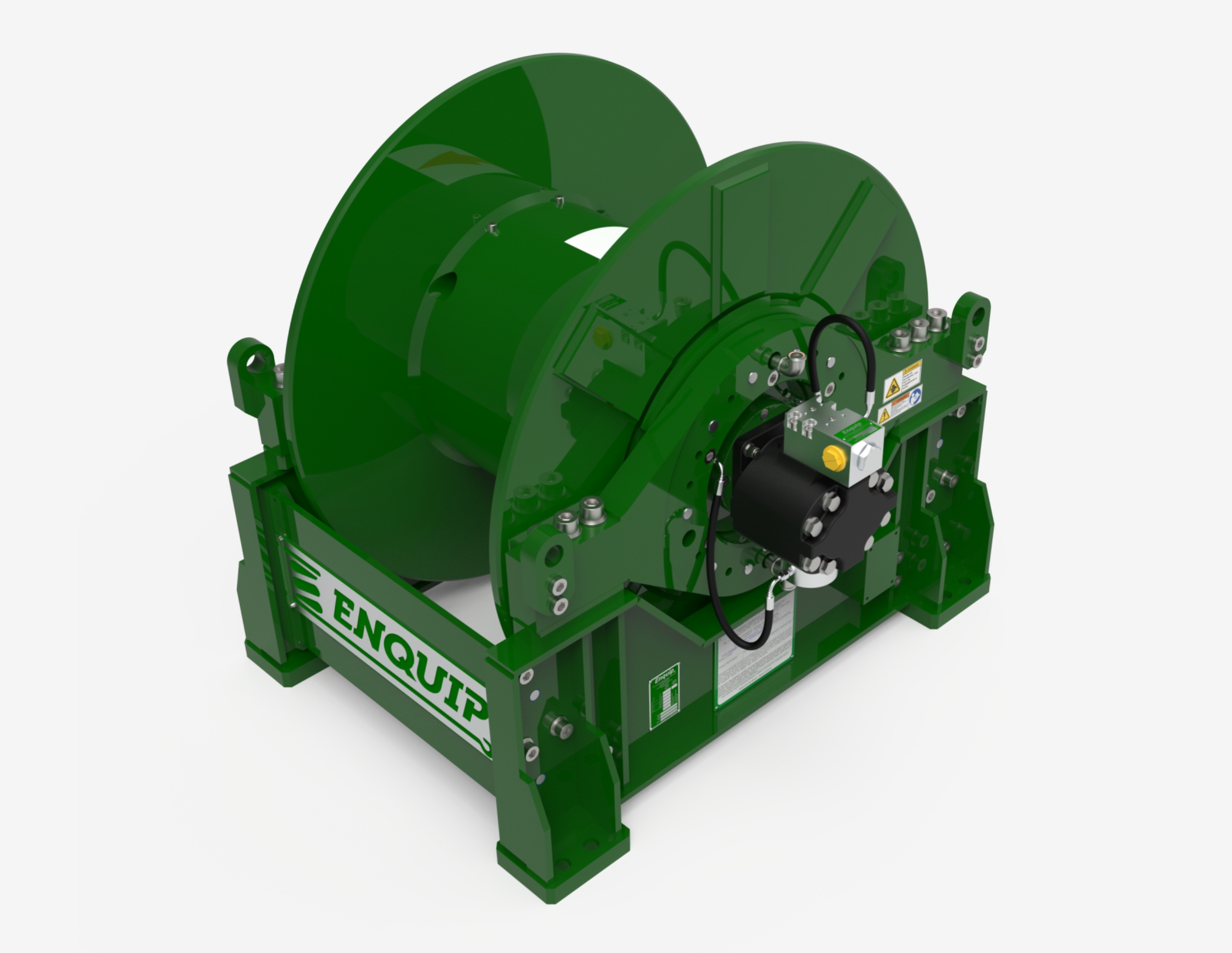

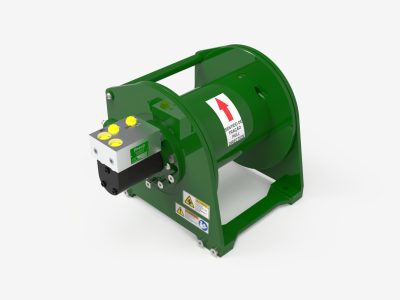

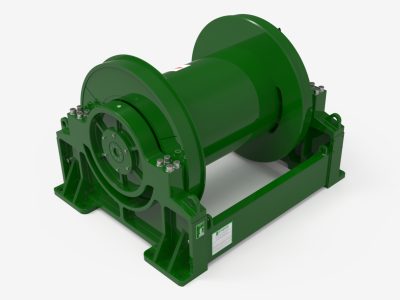

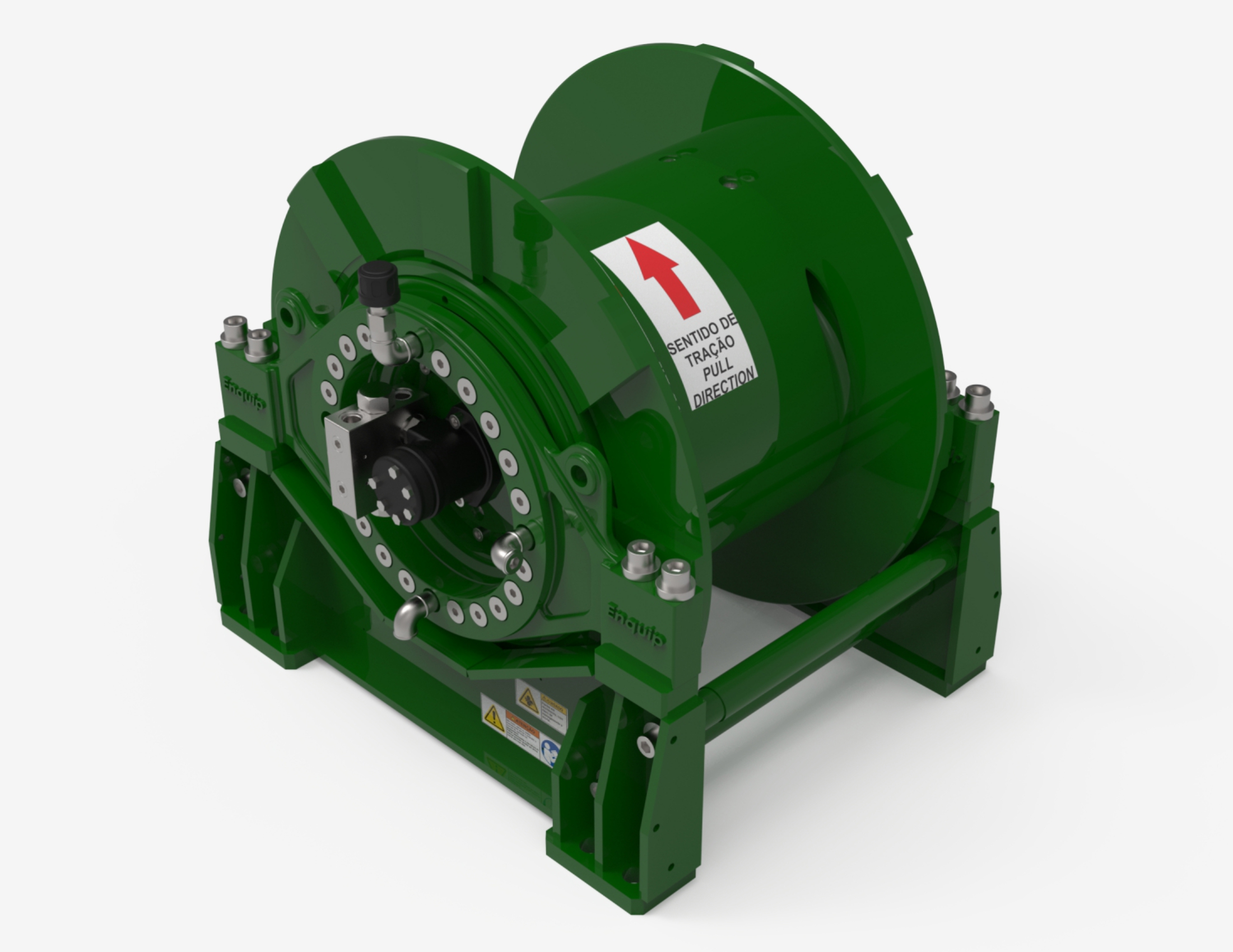

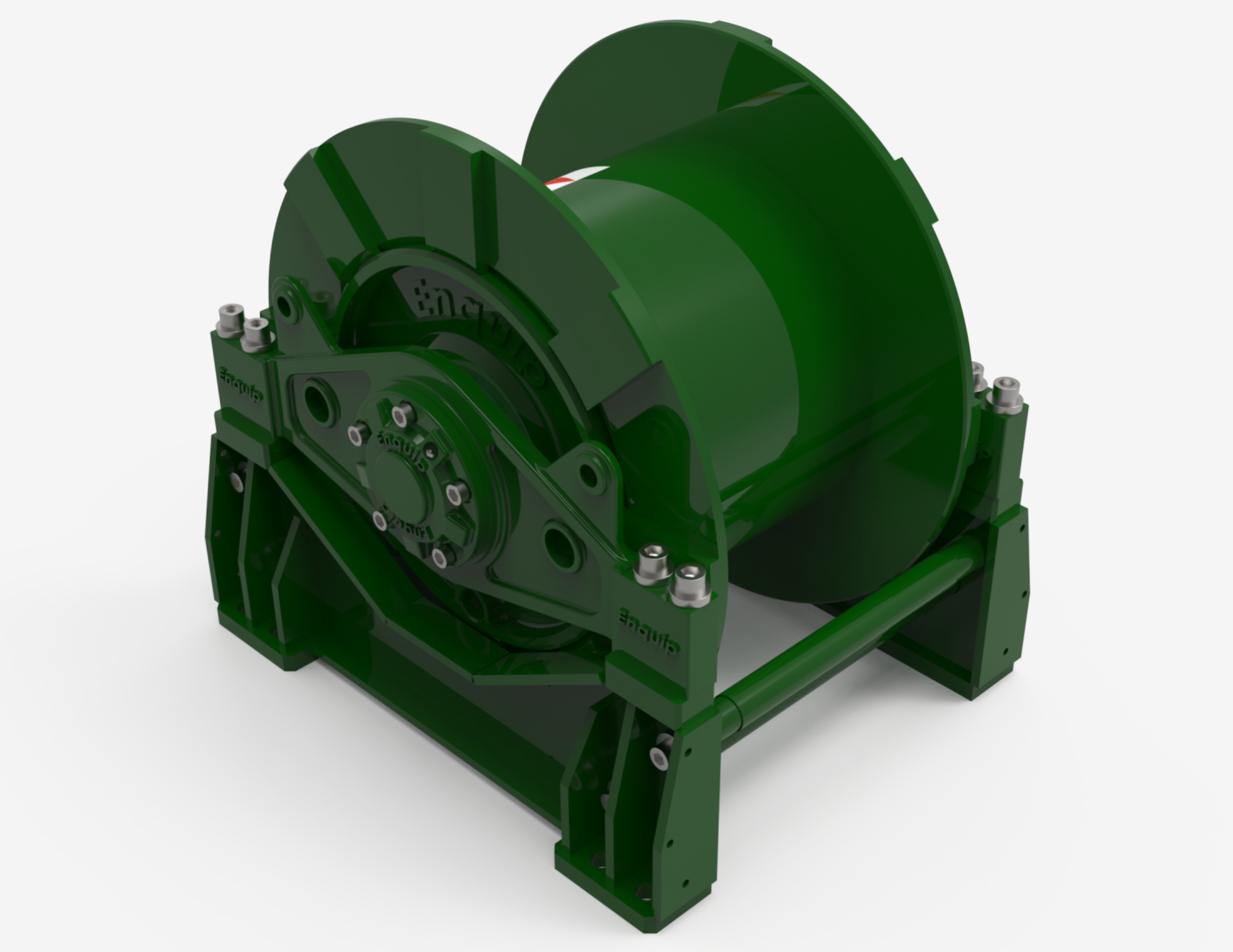

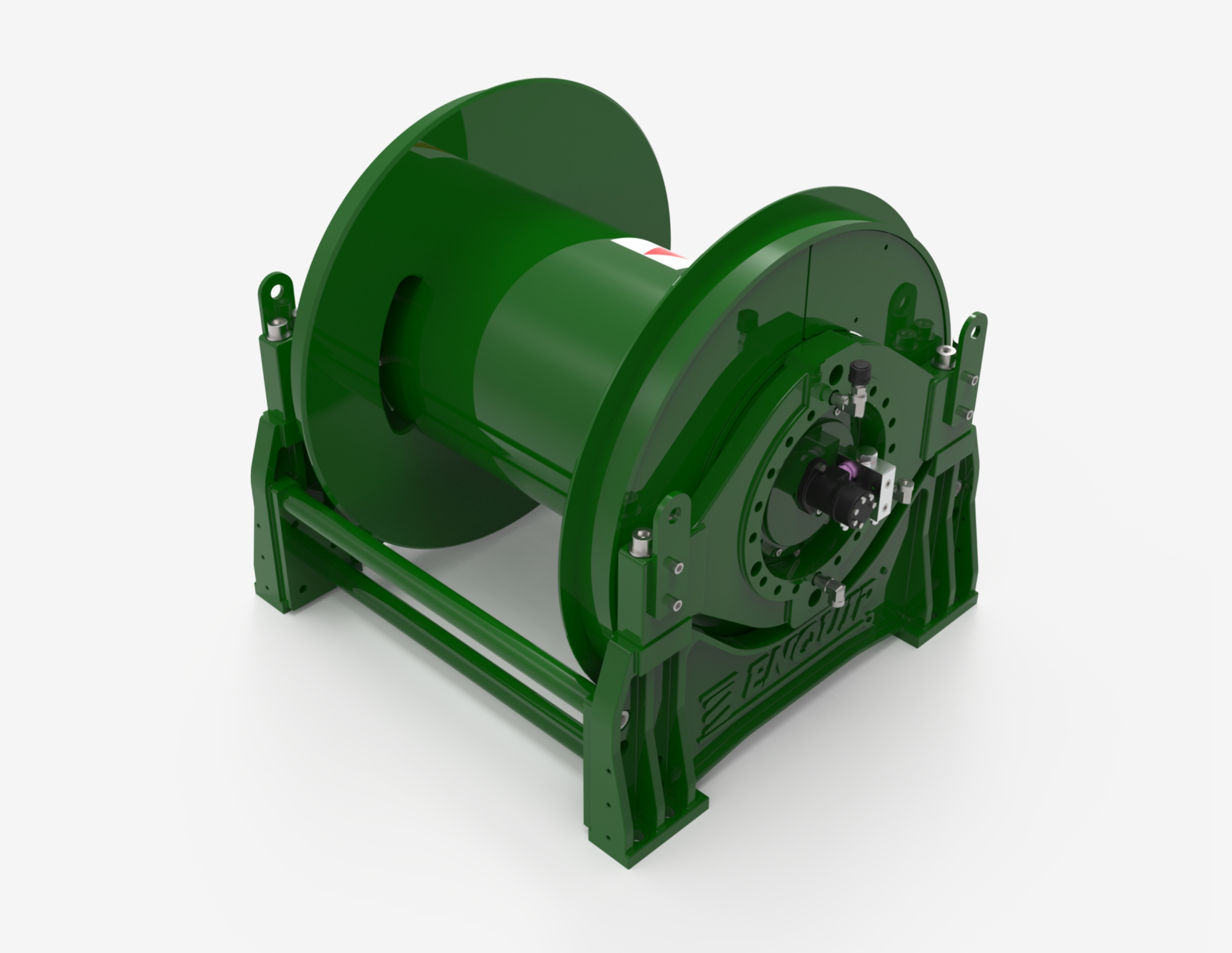

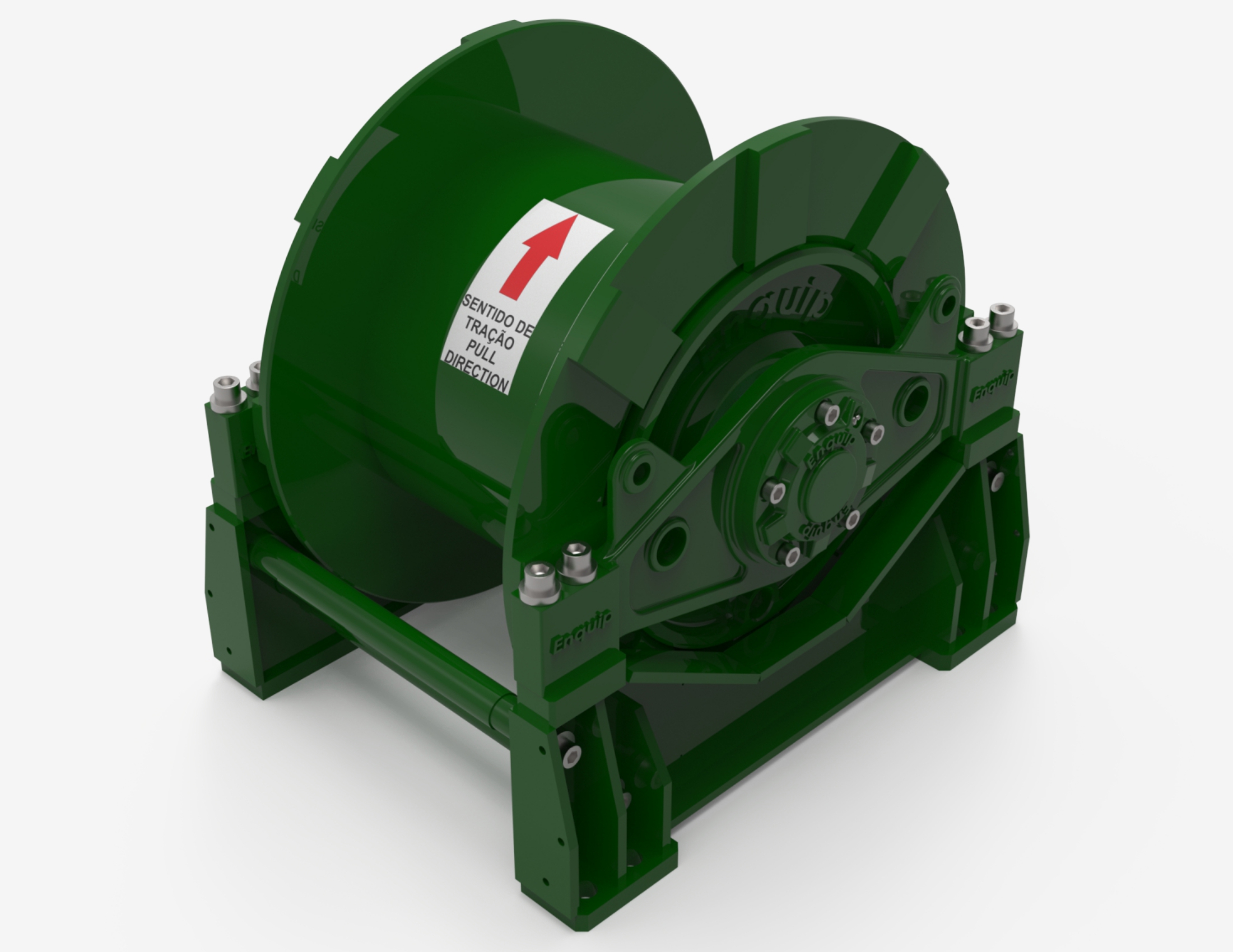

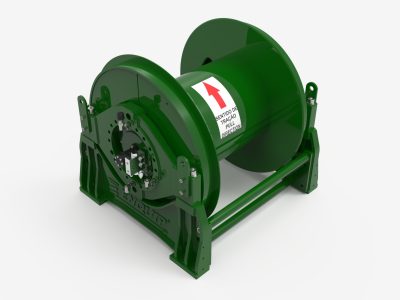

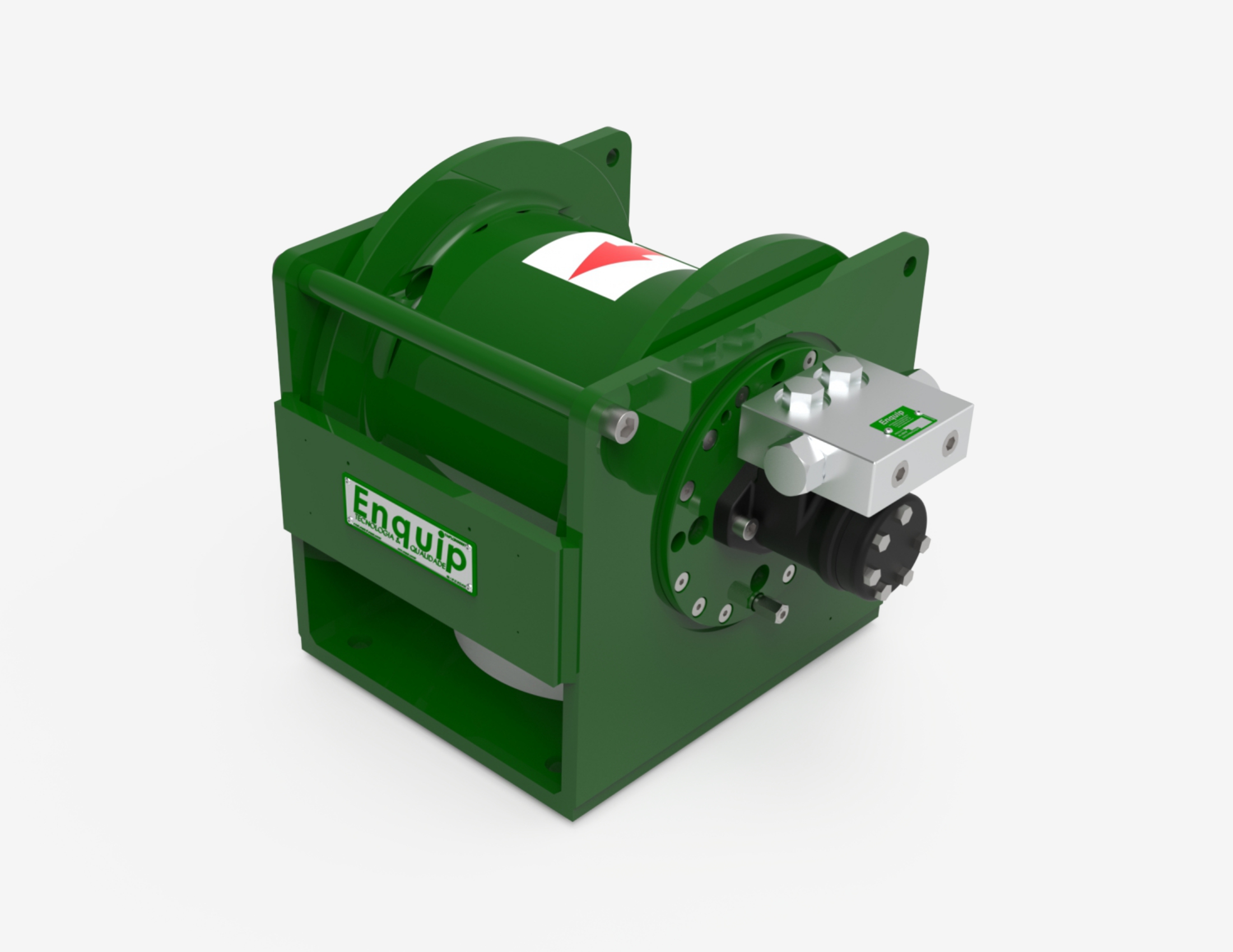

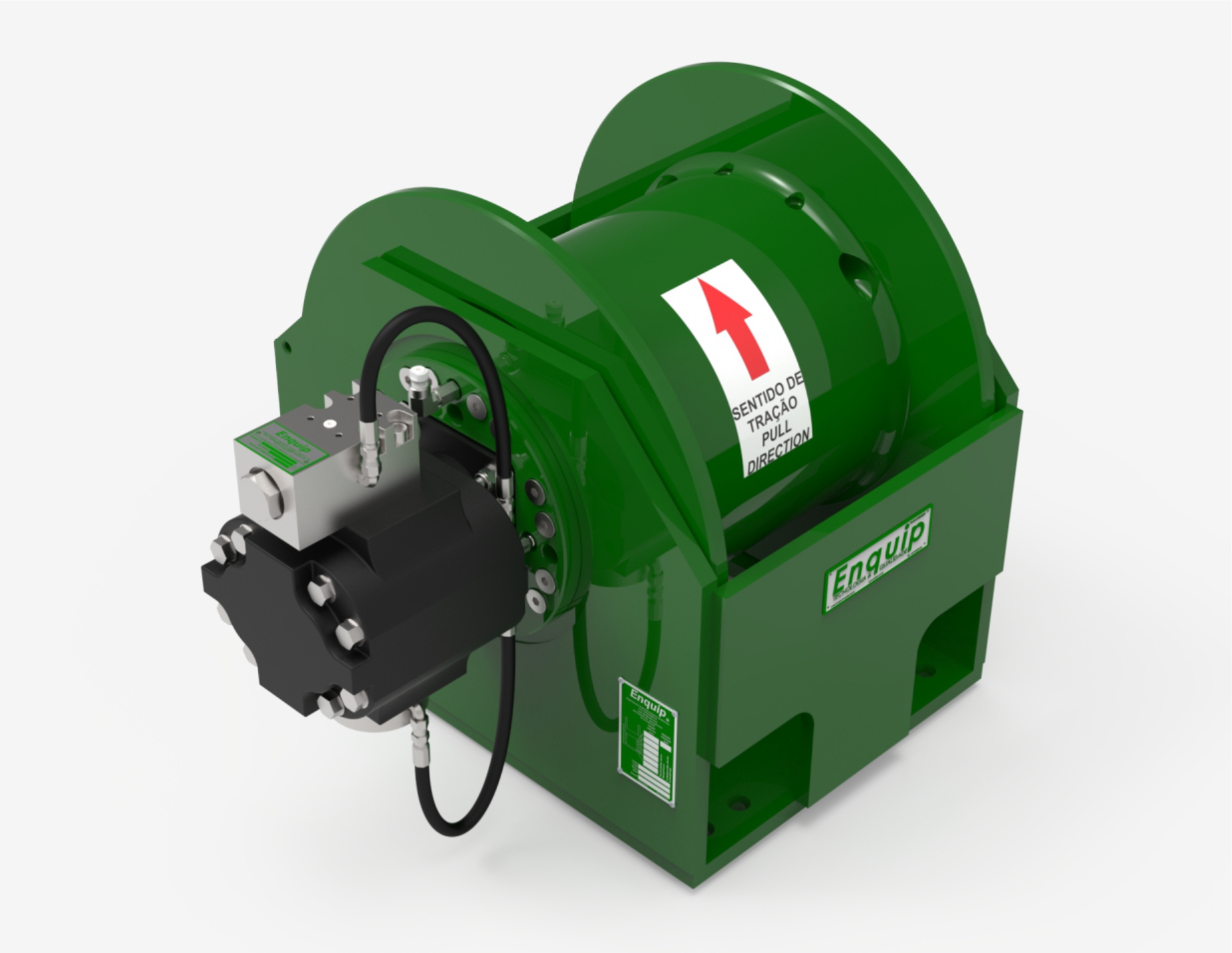

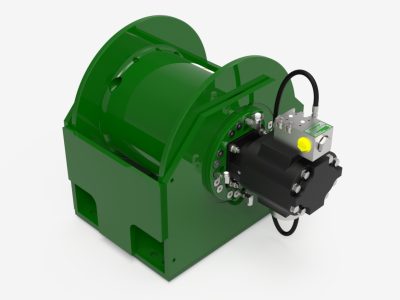

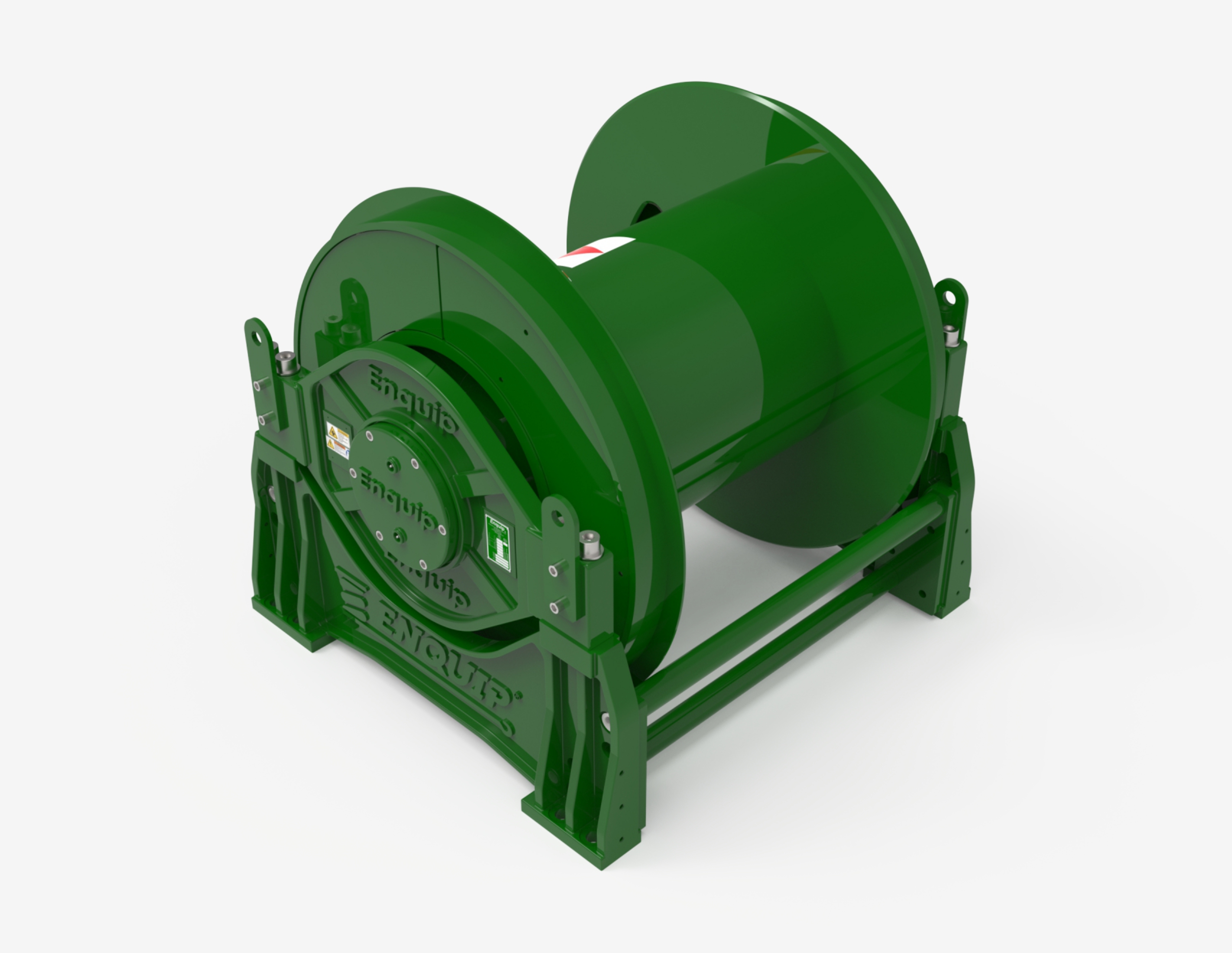

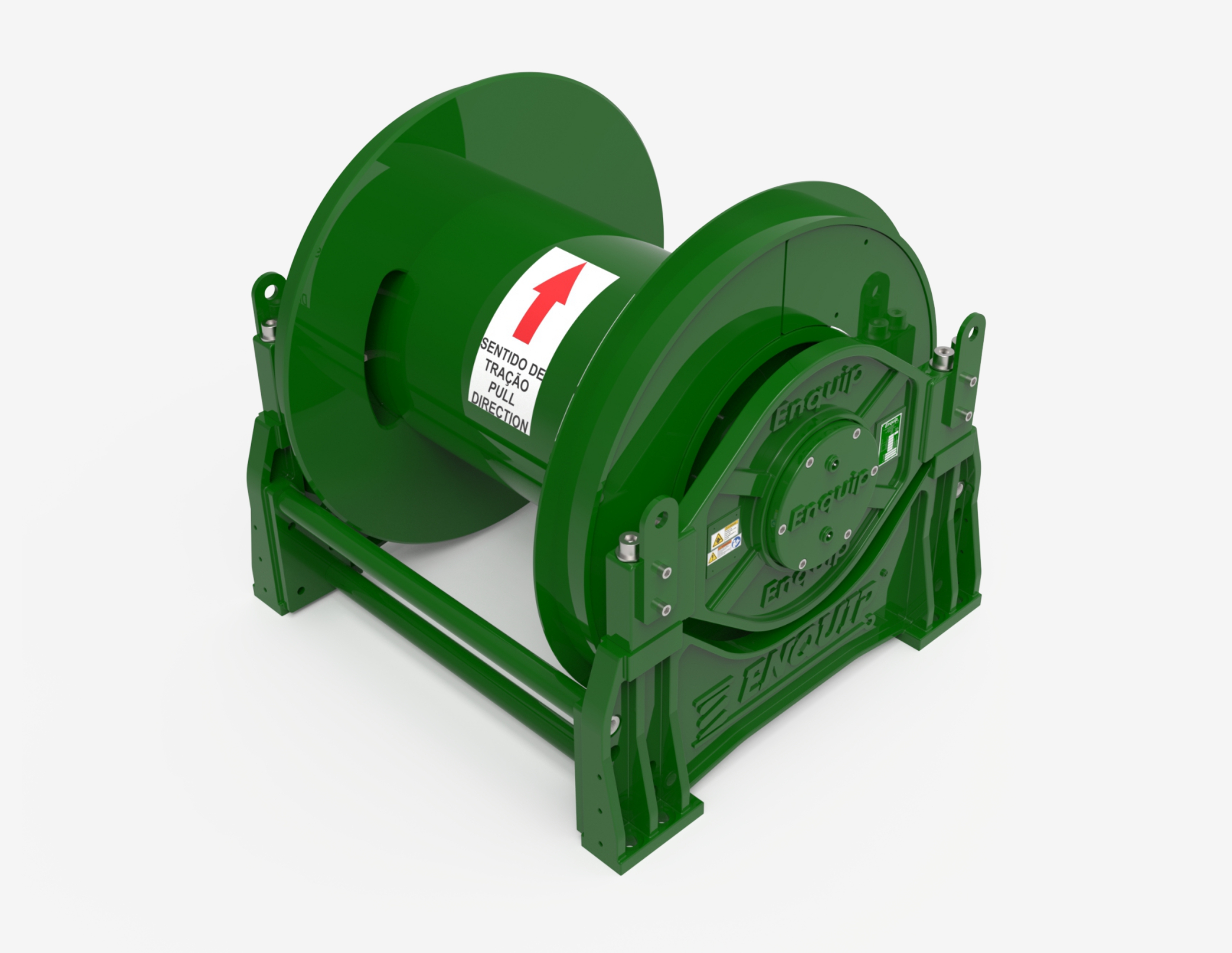

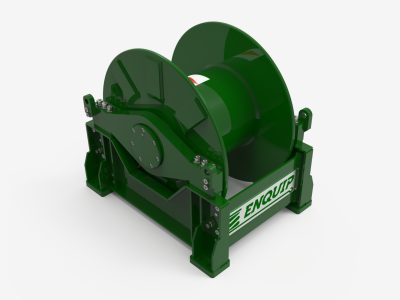

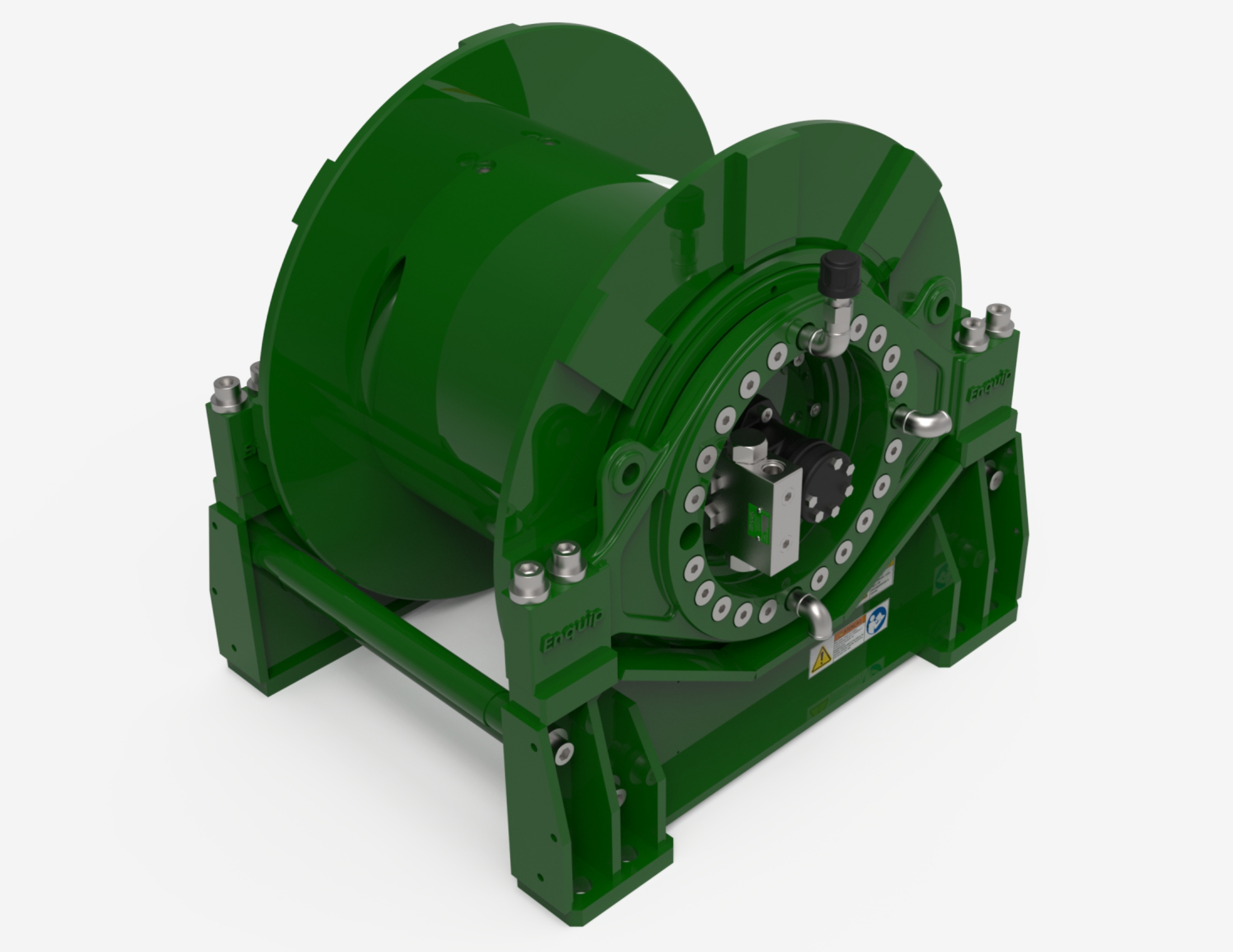

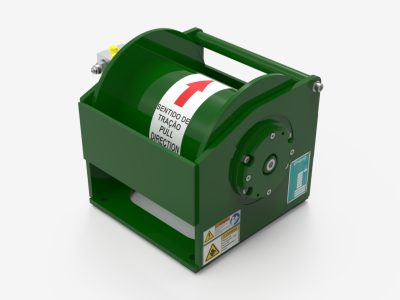

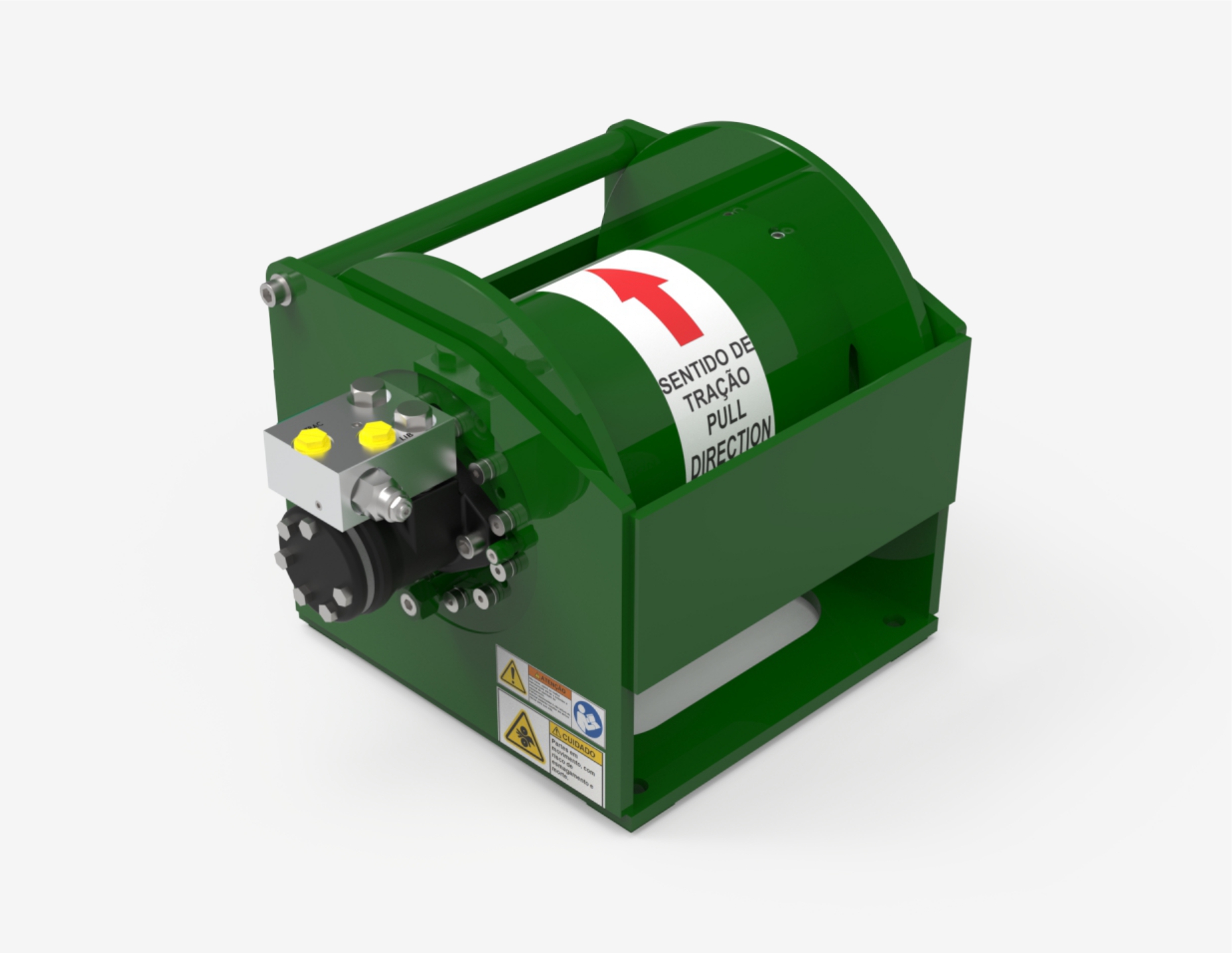

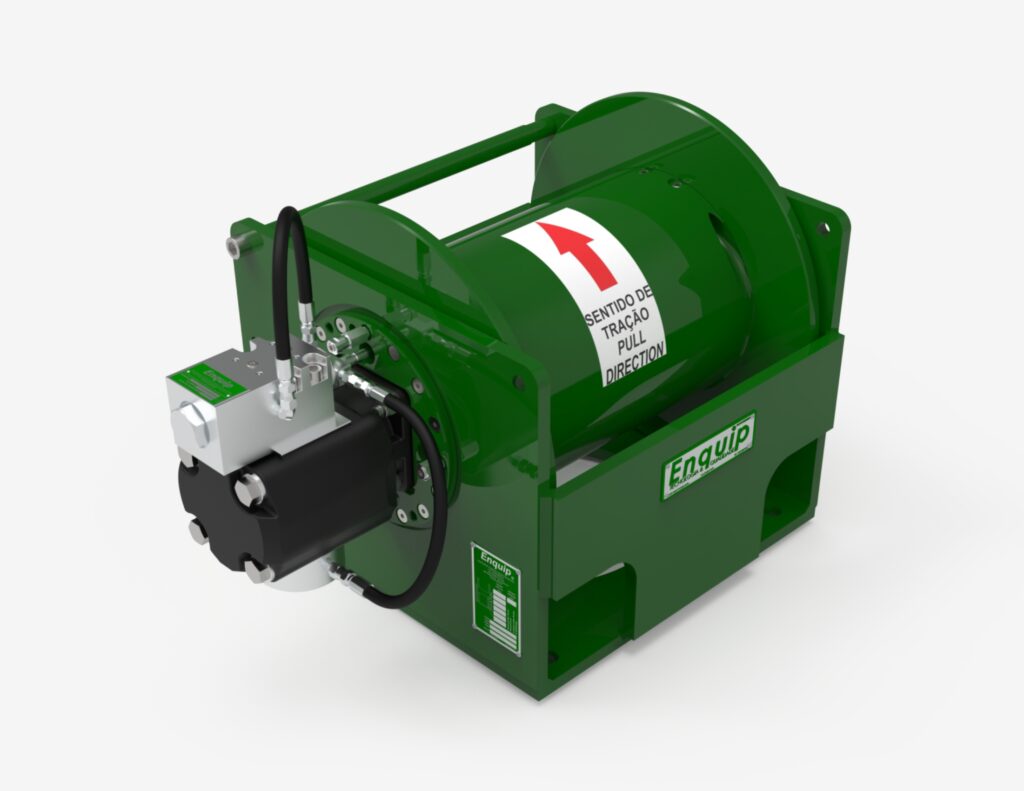

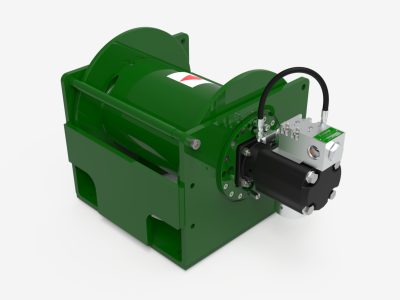

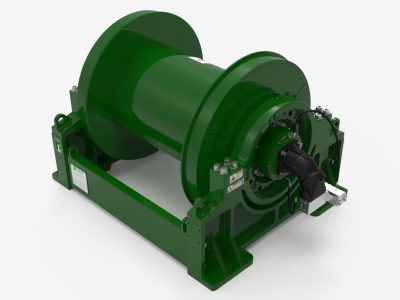

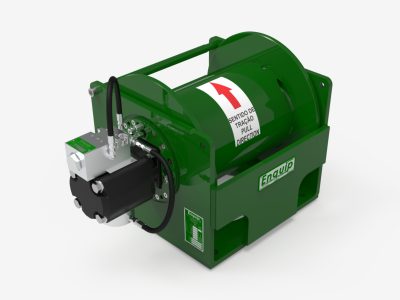

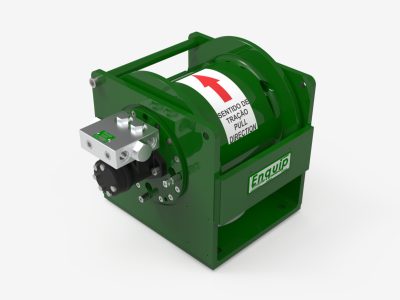

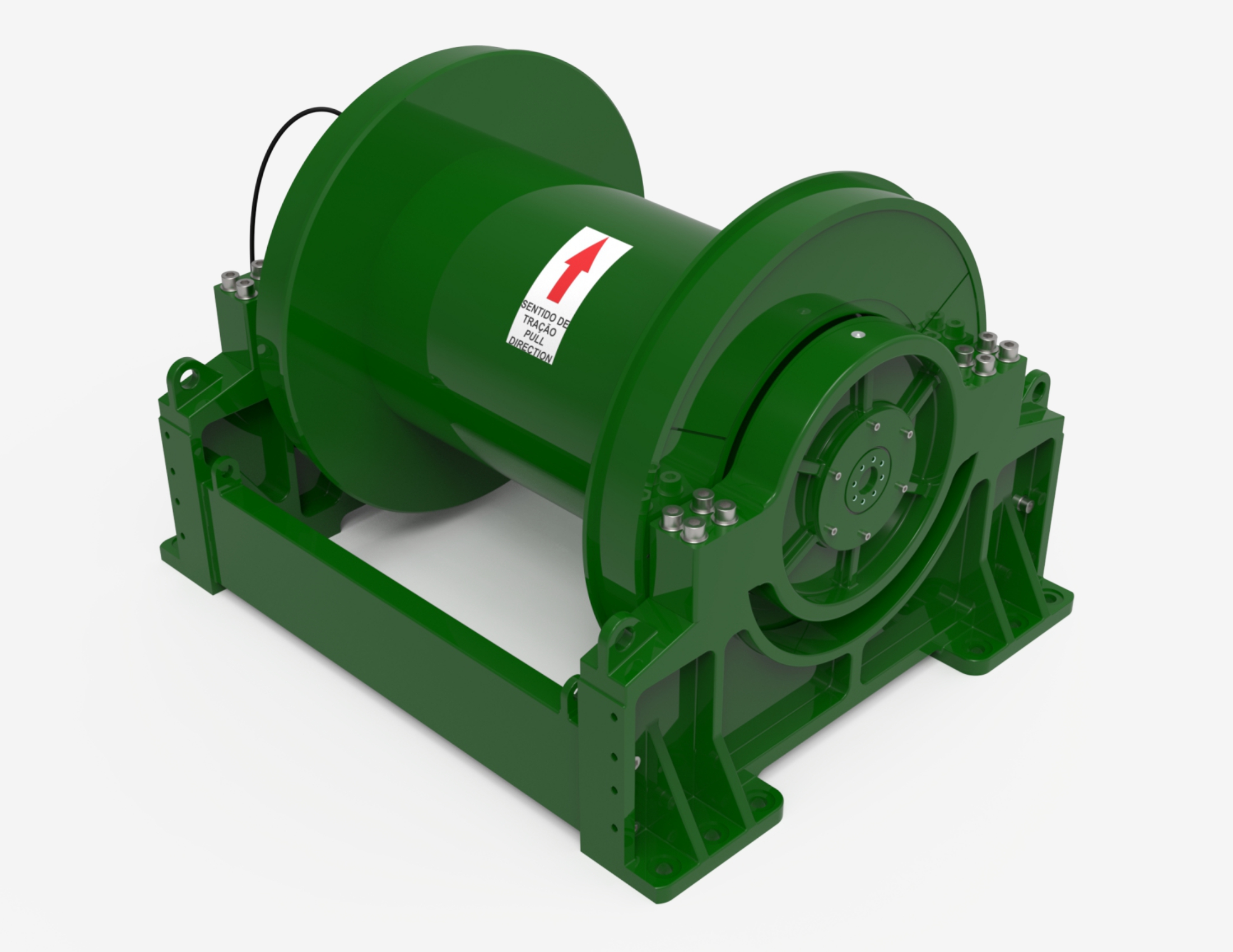

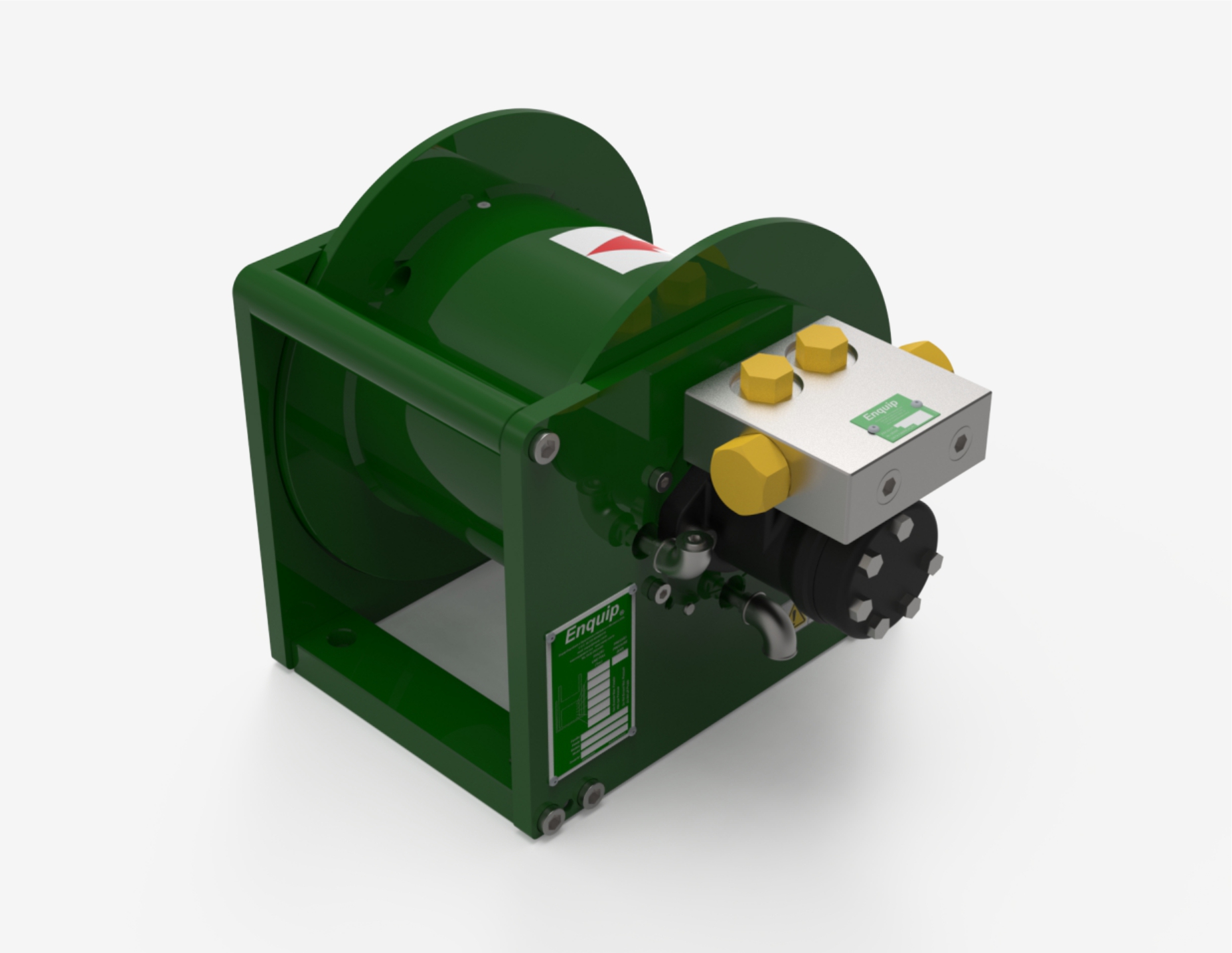

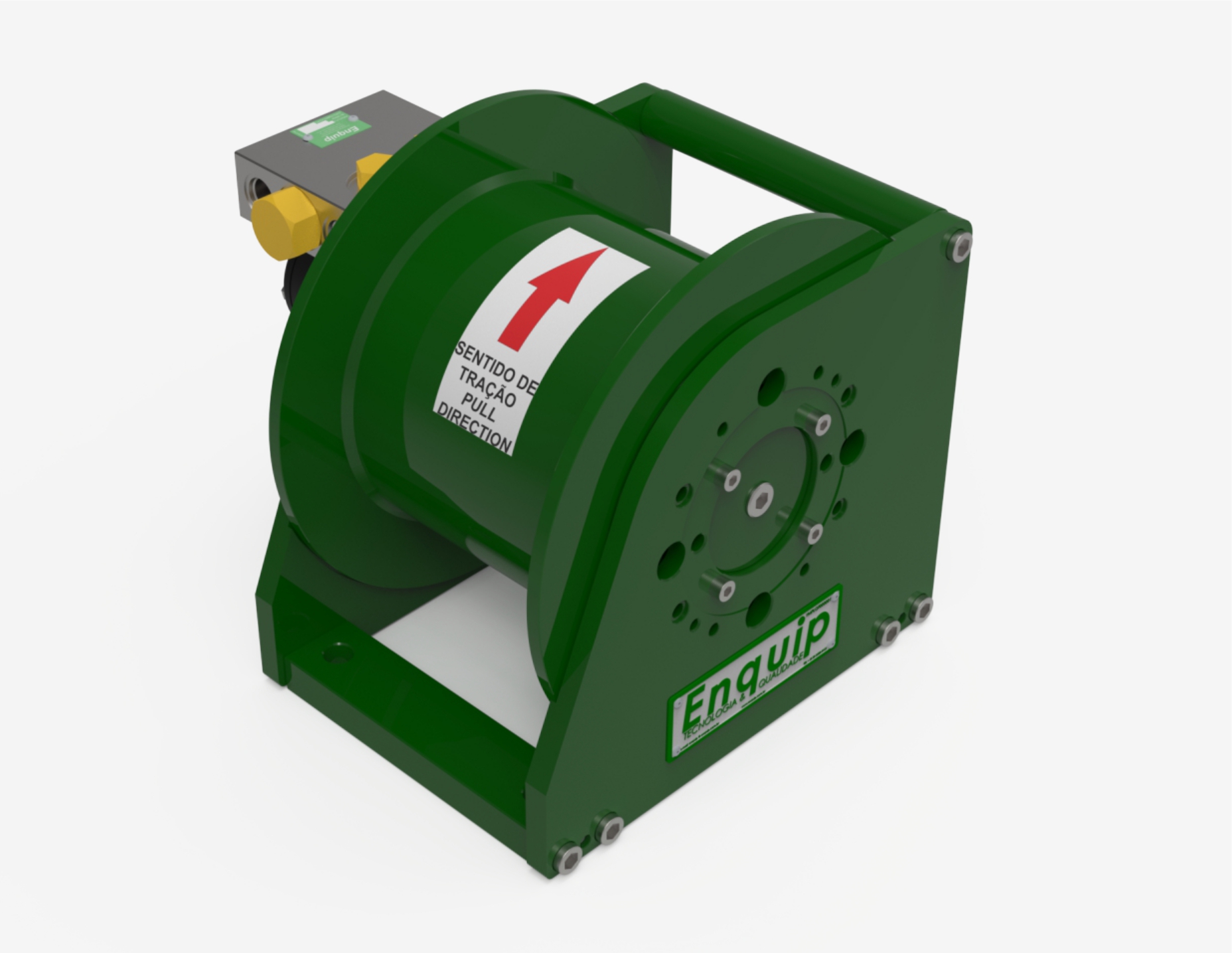

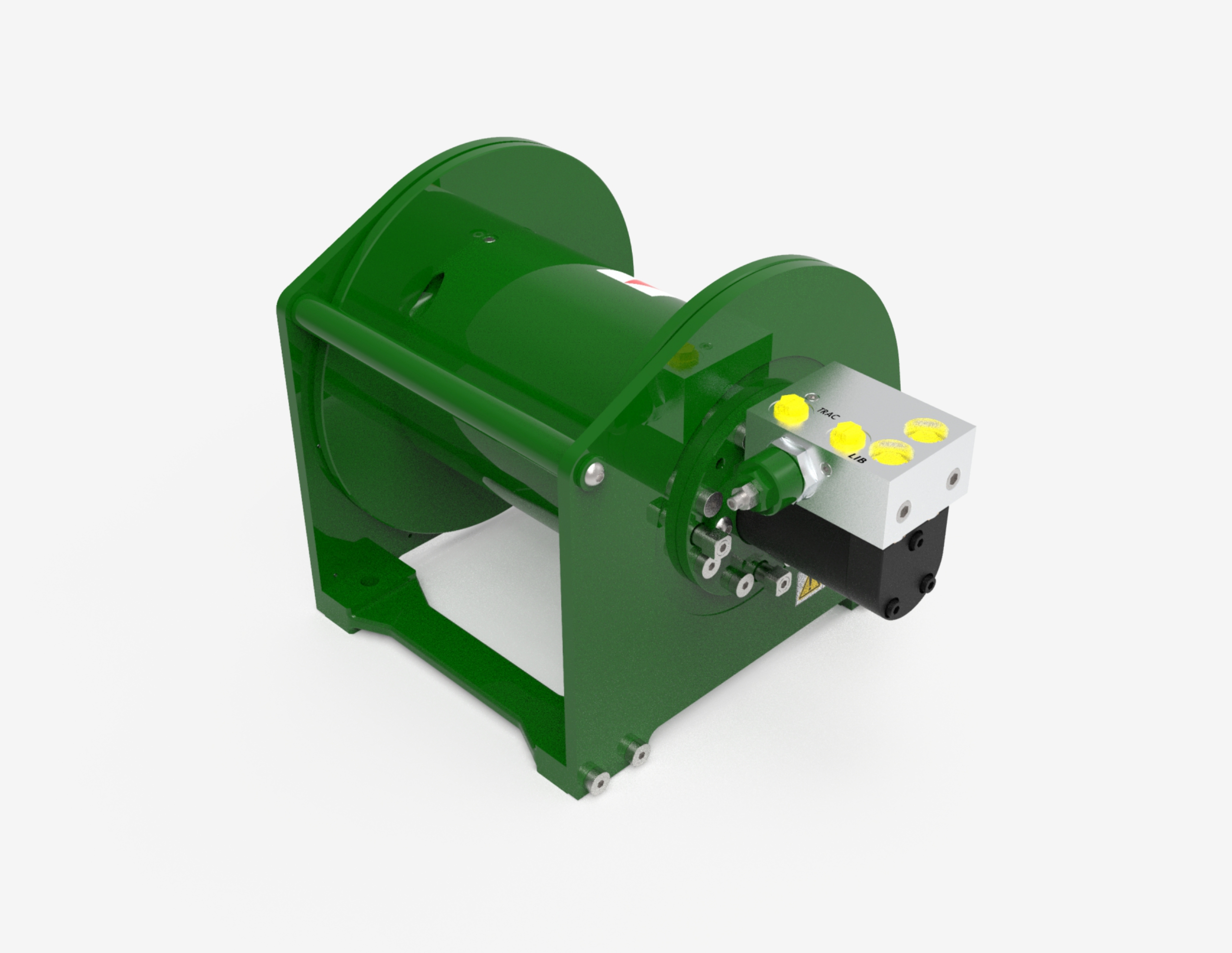

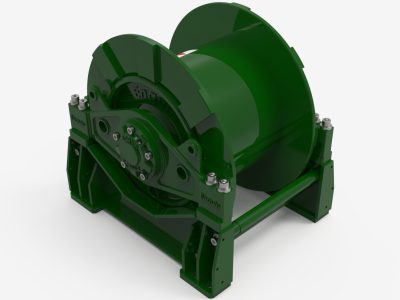

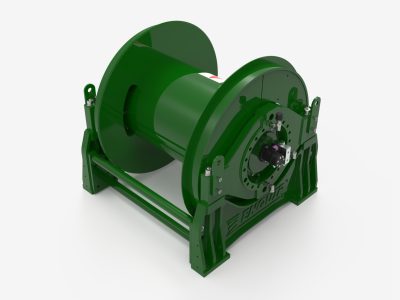

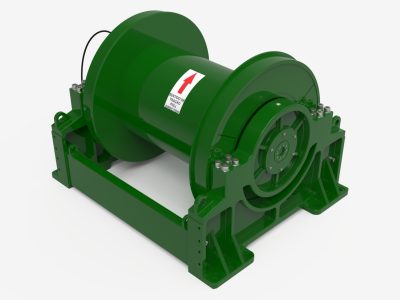

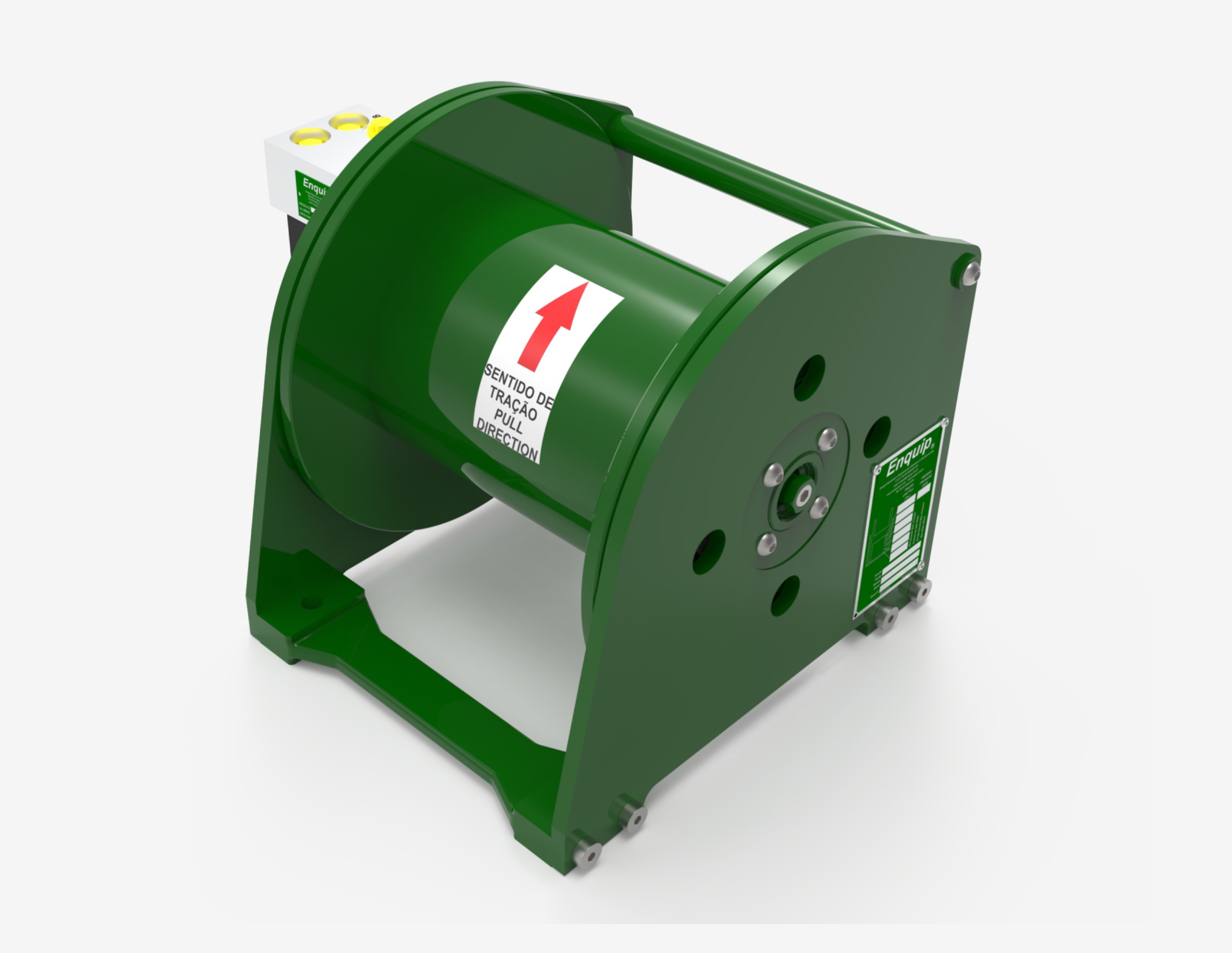

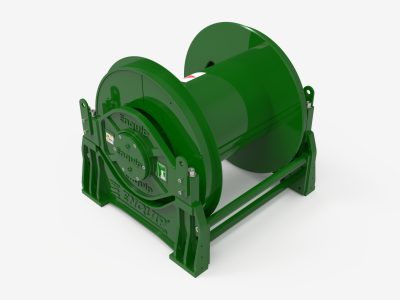

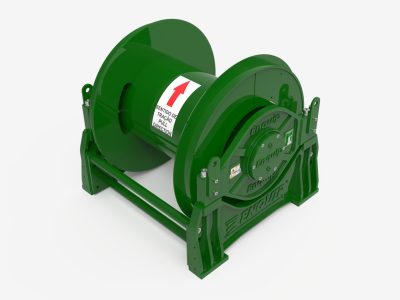

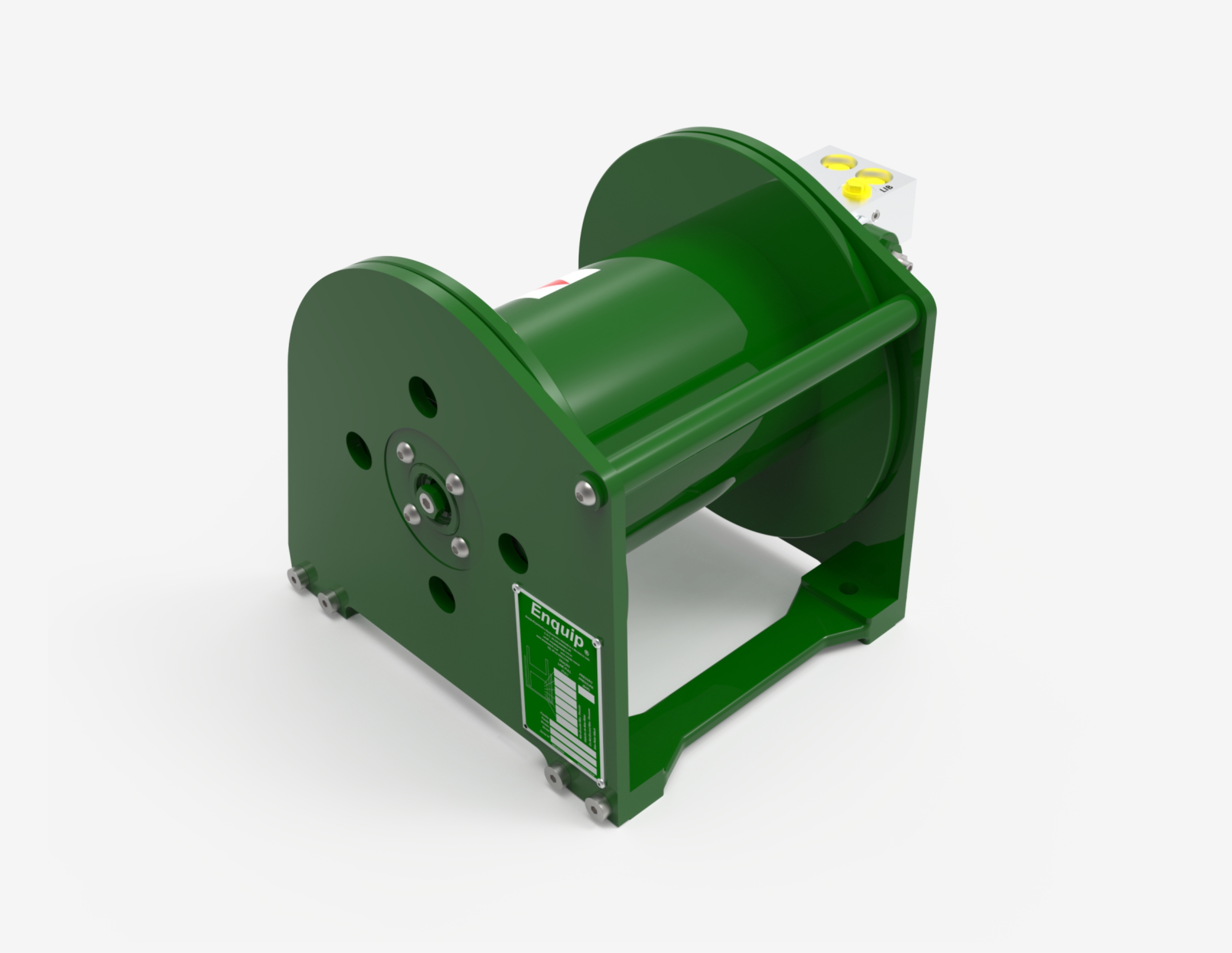

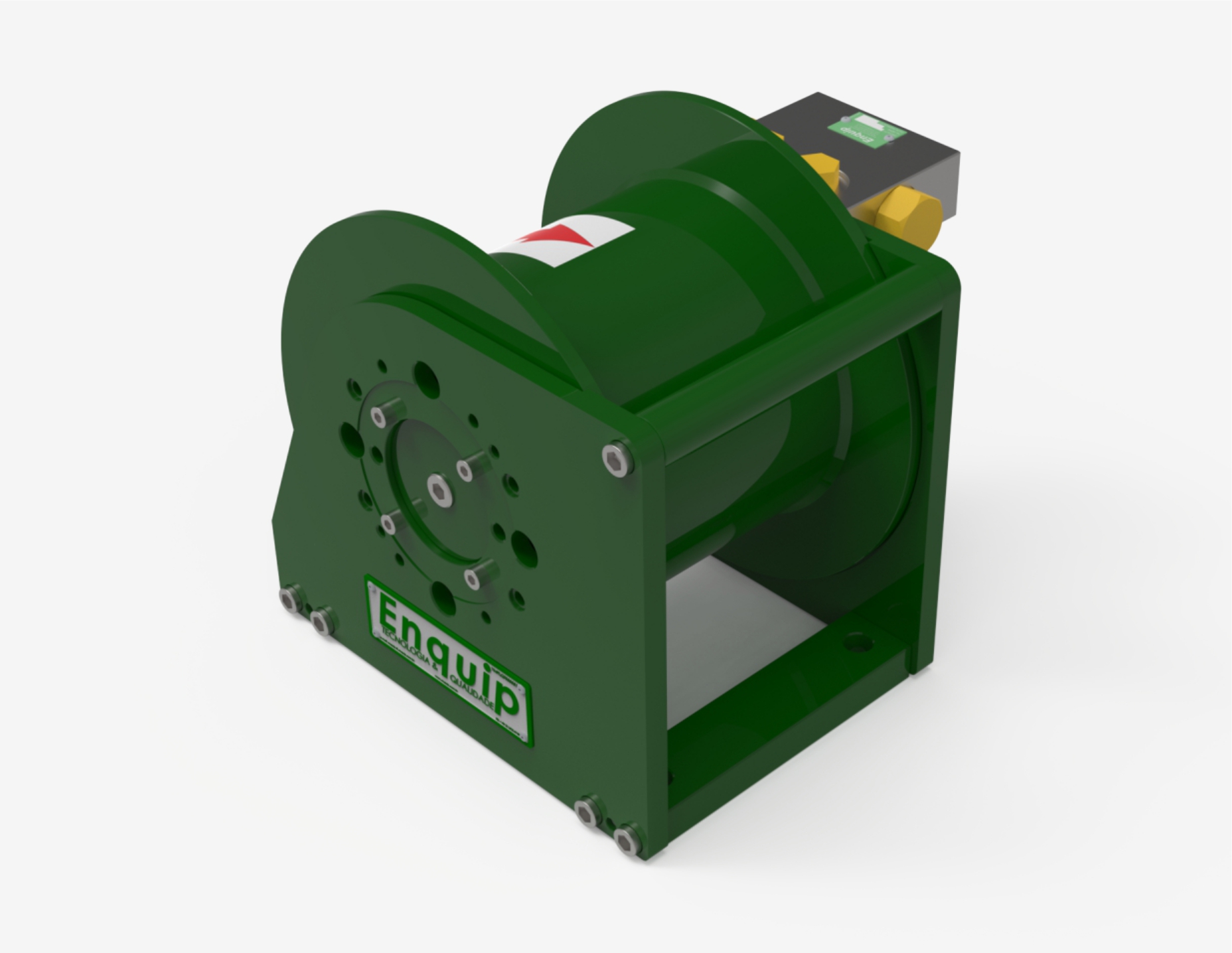

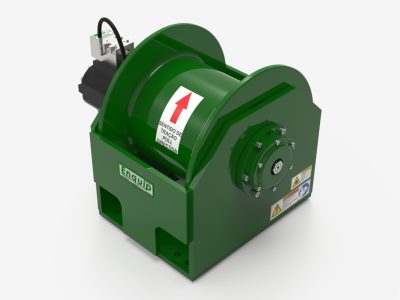

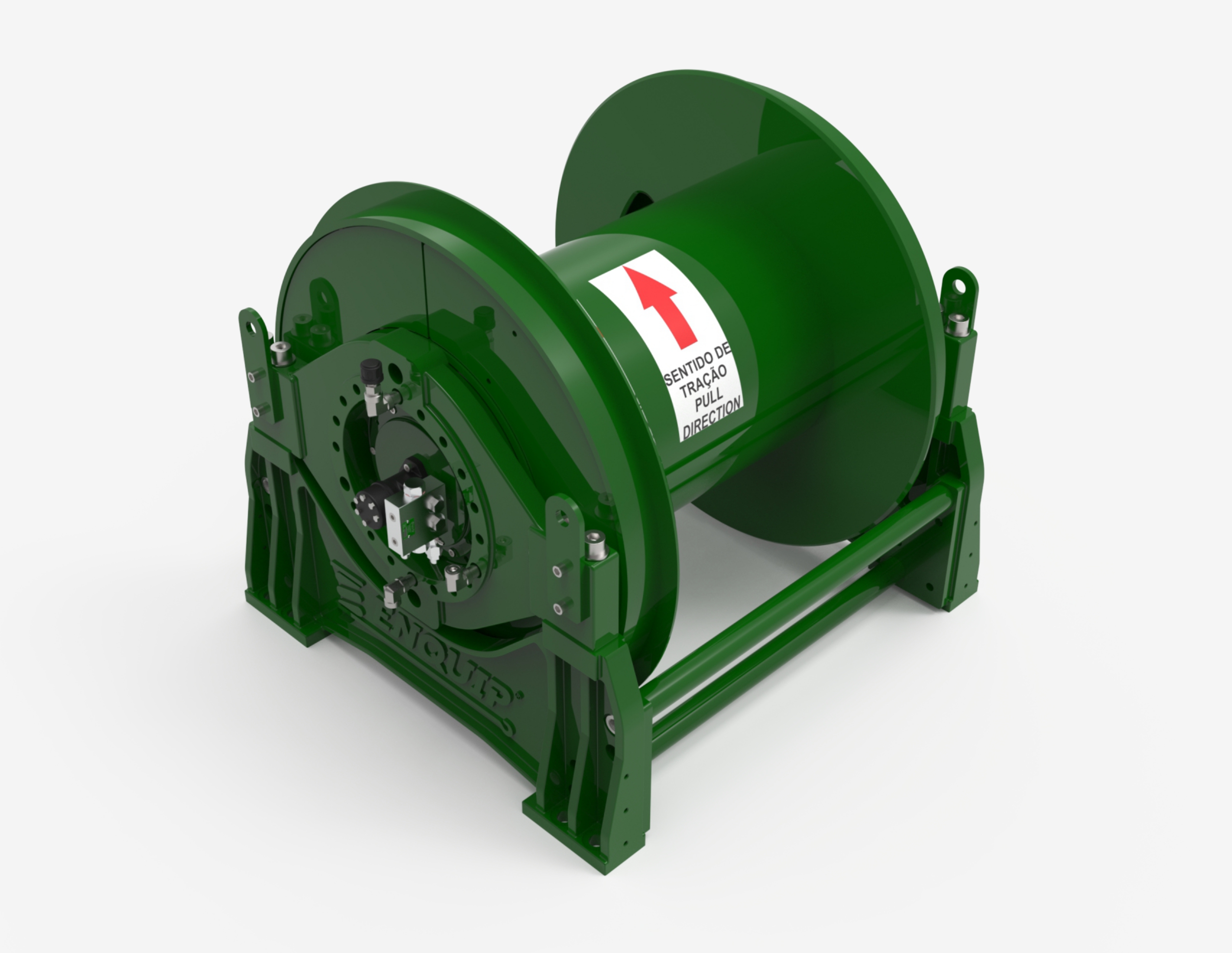

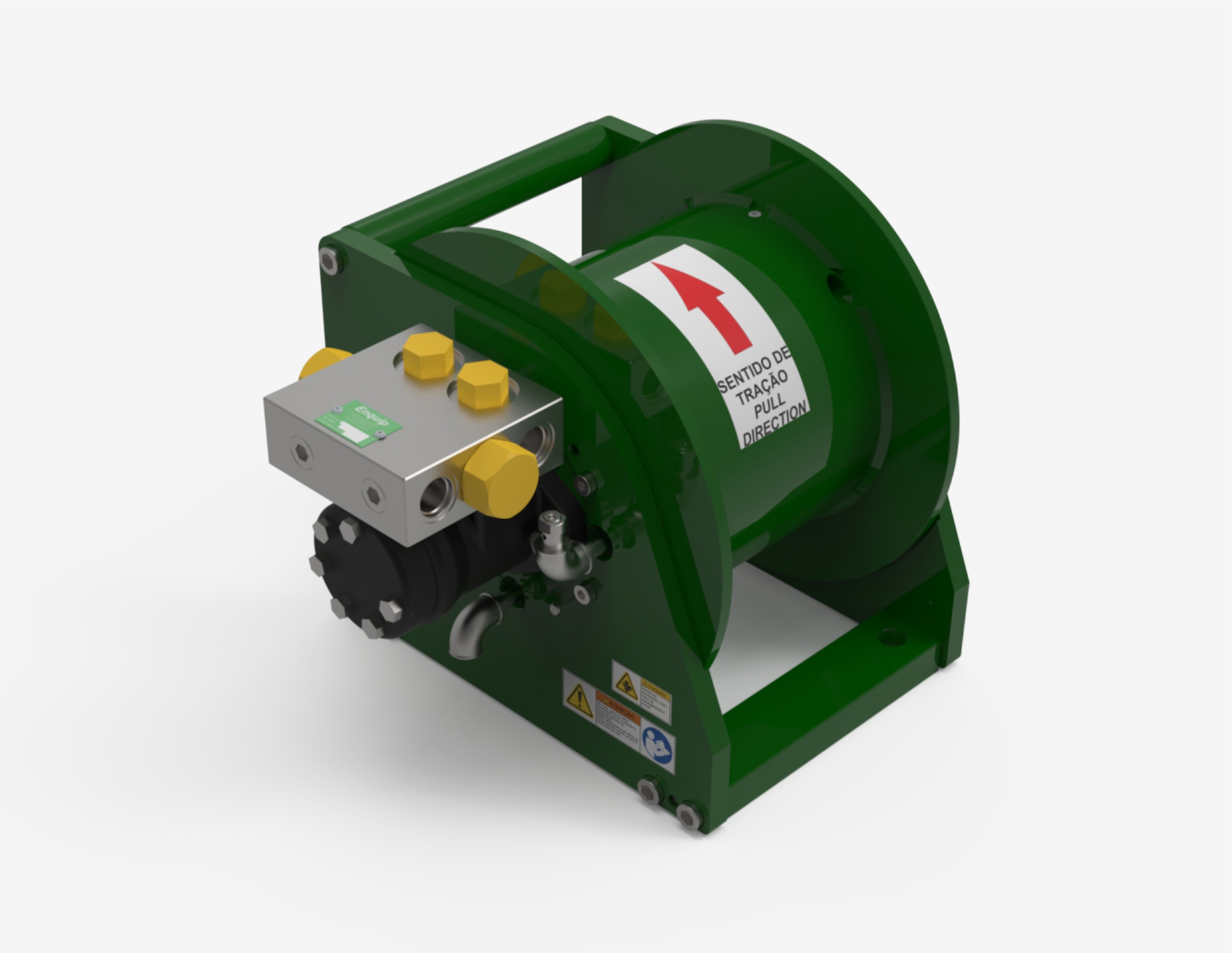

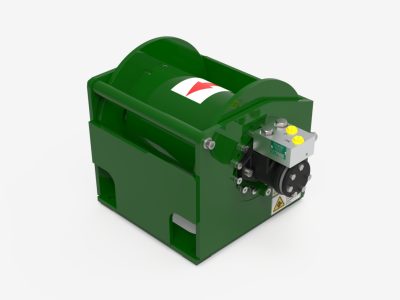

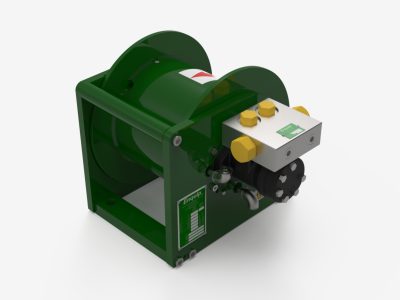

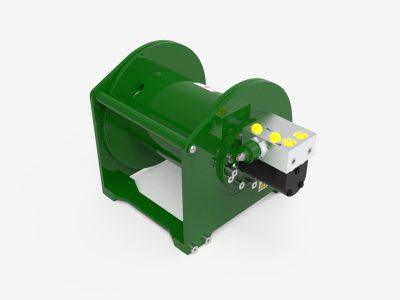

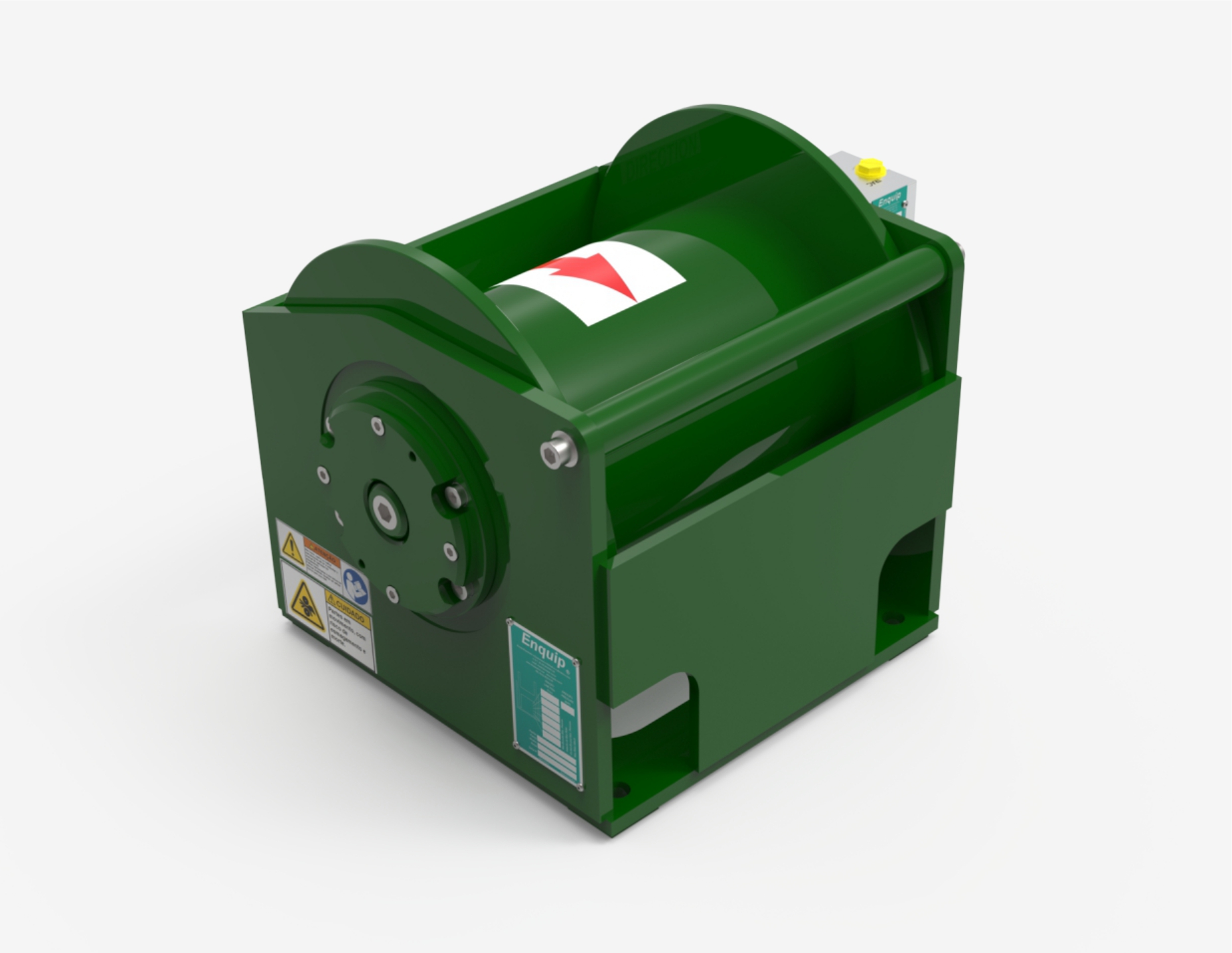

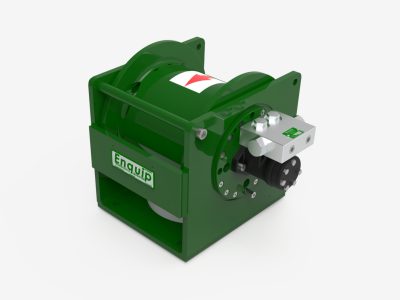

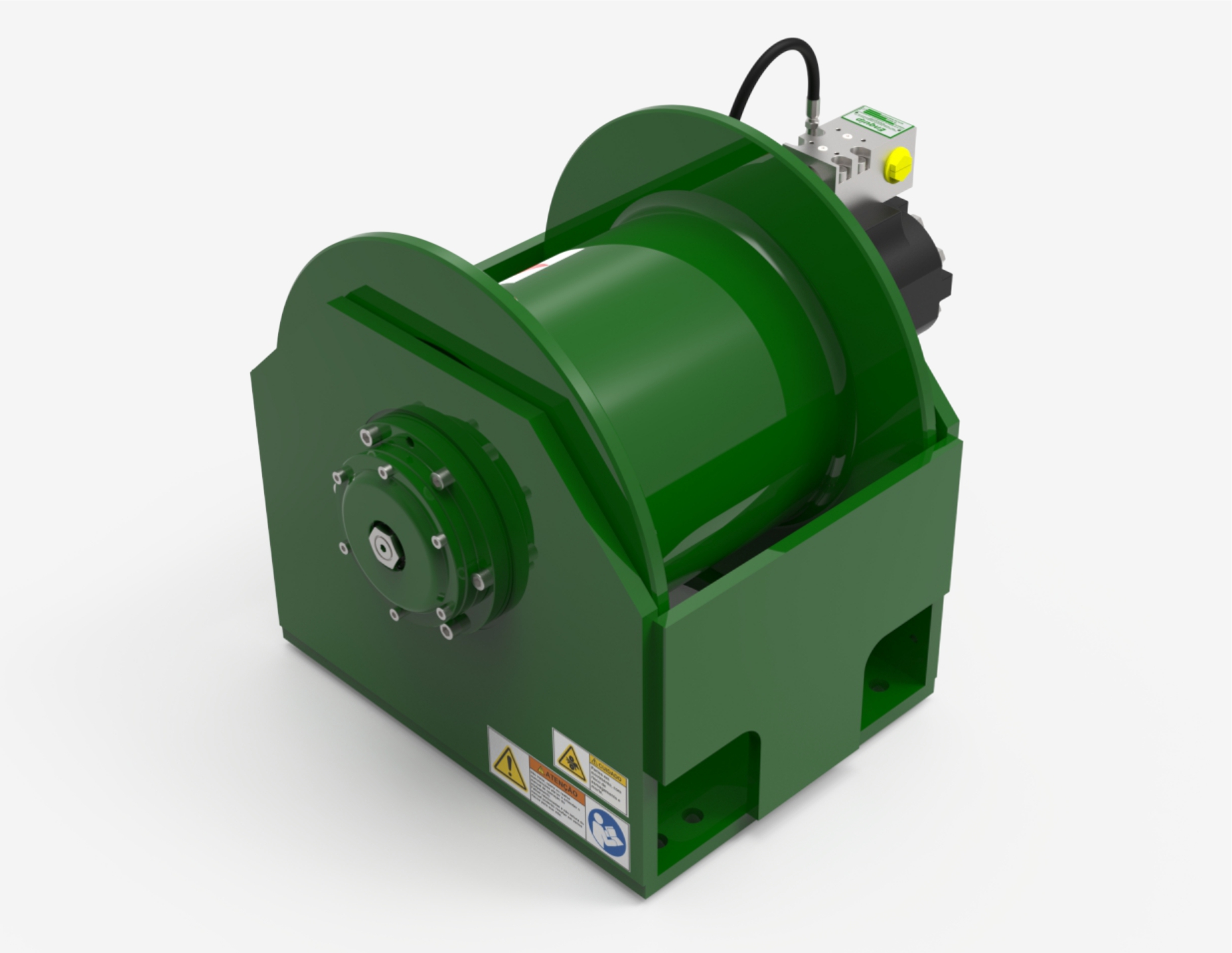

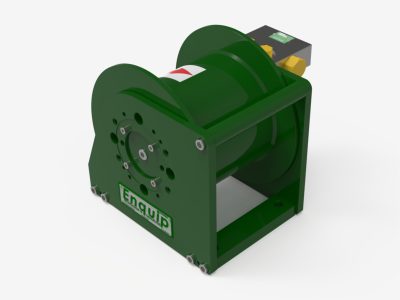

Hoist and traction winches, with planetary gear reducers mounted internally to the drum, developed for applications in provision cranes, offshore cranes, mobile or self-propelled cranes, drilling rigs, pile drivers, and mooring systems in fixed and floating ports, as well as any other traction and hoisting applications requiring reliability in load retention. Operating with dynamic braking valve, counterbalance valve, in conjunction with automatic multi-disc brakes and a one-way anti-reverse clutch, and high spooling wire rope speed.
5,510 Lbf
Ø 8 mm (5/16″): Up to 262 ft
Ø 9.5 mm (3/8″): Up to 177 ft
Ø 11 mm (7/16″): Up to 157 ft
6,610 Lbf
Ø 8 mm (5/16″): Up to 246 ft
Ø 11 mm (7/16″): Up to 190 ft
Ø 13 mm (1/2″): Up to 115 ft
8,820 Lbf
Ø 9.5 mm (3/8″): Up to 482 ft
Ø 11 mm (7/16″): Up to 348 ft
Ø 13 mm (1/2″): Up to 233 ft
11,020 Lbf
Ø 9.5 mm (3/8″): Up to 400 ft
Ø 13 mm (1/2″): Up to 243 ft
Ø 16 mm (5/8″): Up to 144 ft
22,050 Lbf
Ø 13 mm (1/2″): Up to 1,433 ft
Ø 16 mm (5/8″): Up to 1,004 ft
Ø 19 mm (3/4″): Up to 663 ft
44,100 Lbf
Ø 19 mm (3/4″): Up to 673 ft
Ø 22 mm (7/8″): Up to 469 ft
Ø 26 mm (1″): Up to 322 ft
77,200 Lbf
Ø 22 mm (7/8″): Up to 2,894 ft
Ø 26 mm (1″): Up to 1,982 ft
Ø 32 mm (1 1/4″): Up to 1,243 ft
99,200 Lbf
Ø 32 mm (1 1/4″): Up to 1,033 ft
Ø 38 mm (1 1/2″): Up to 771 ft
Ø 42 mm (1 5/8″): Up to 561 ft
121,300 Lbf
Ø 32 mm (1 1/4″): Up to 1,929 ft
Ø 45 mm (1 3/4″): Up to 738 ft
Ø 52 mm (2″): Up to 669 ft
220,500 Lbf
Ø 38 mm (1 1/2″): Up to 1,388 ft
Ø 45 mm (1 3/4″): Up to 974 ft
Ø 52 mm (2″): Up to 663 ft
Founded in 1983, Enquip operates with a strong focus on product engineering and precision manufacturing, working in the design, development, manufacture and marketing of lifting and cargo handling equipment, mainly in traction and hoist winches, hydraulic, pneumatic and electrically driven, and related products, such as capstans and naval windlasses and hydraulic telescopic boom cranes.
