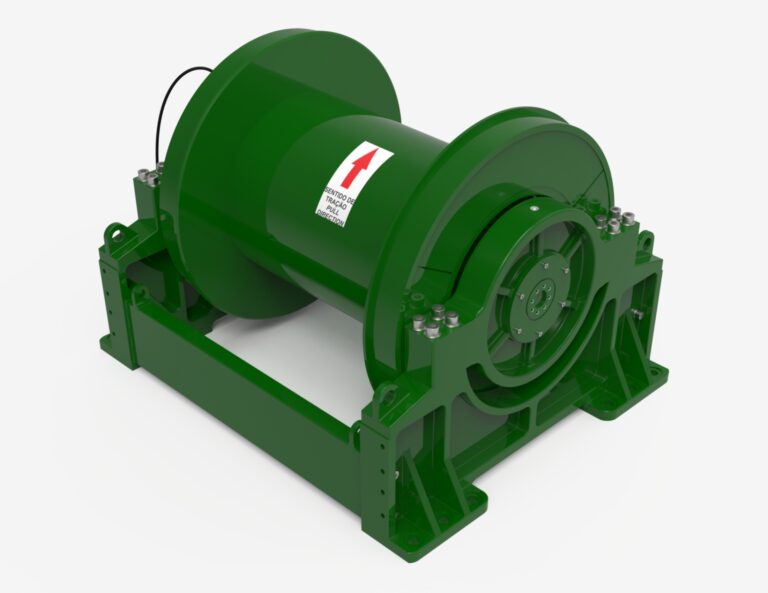

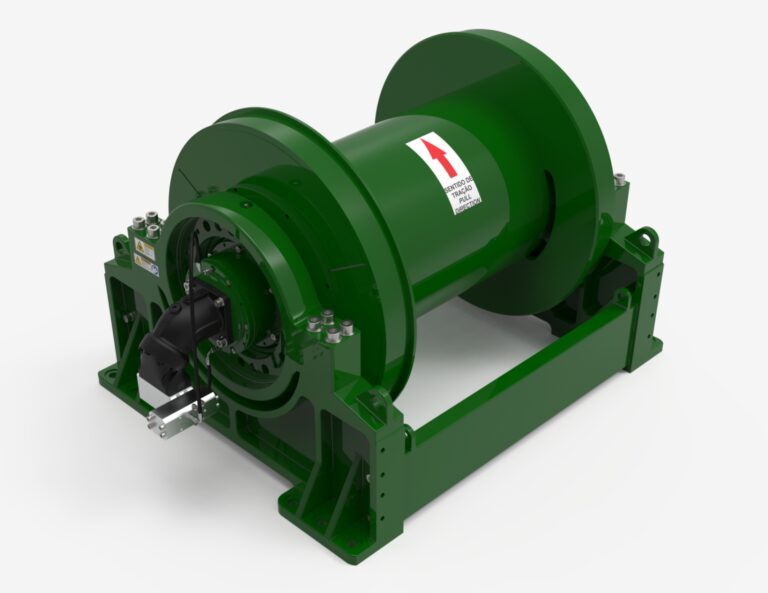

GHL 201000
- Rated Load Capacity: 220,500 lbf
- Compliance with ANSI B30.7 standard;
- Compact and highly durable design;
- Automatic multi-disc brake device, normally applied by springs and hydraulically released. This allows the winch to brake the load even in case of hydraulic failure;
- One-way anti-reverse clutch, providing enhanced safety in operation;
- Highly compact planetary reducer, composed of heat-treated alloy steel gears, ensuring long equipment life;
- Dynamic braking valve (counterbalance type), enabling smooth operation and precise load control;
- Drum mounted on high-performance bearings, maximizing efficiency.
- Mooring operations at fixed and floating ports;
- Pull-in operations of risers on platforms;
- Gantry cranes;
- General construction.
- Options with geroler type motors1, gear motors2, and axial piston motors;
- Different gear ratios;
- Grooved drum;
- Integrated cable tension, line speed, and cable length measurement system;
- Integrated control and log generation system for maintenance indication;
- Encoder for rotational and line speed measurement;
- Last wrap brake;
- Safety pawl;
- Diamond screw levelwind synchronized with the drum;
- ACME thread levelwind, driven by a hydraulic motor synchronized with the drum’s rotation;
- Band brake (automatic or manual actuation);
- Drum guard;
- Press roller mounted on the drum, assisting in wire rope management during spooling or unspooling;
- Local or remote control (via push button or radio).
1 Maximum working pressure: 2610 PSI. Maximum flow rate: 16 GPM;
2 Maximum working pressure: 2610 PSI. Minimum flow rate: 40 GPM.
2 Maximum working pressure: 2610 PSI. Minimum flow rate: 40 GPM.
Performance with 2″ wire rope, 3,625 PSI pressure, and 49 GPM flow rate.
