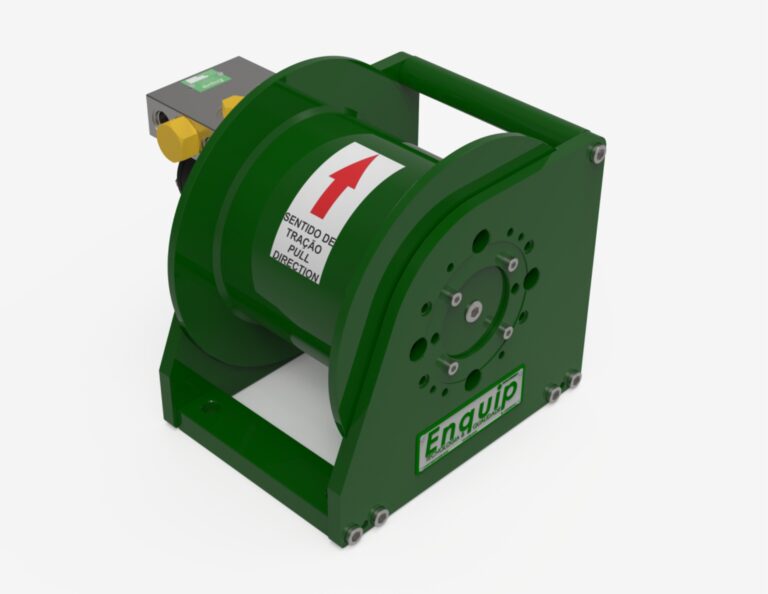

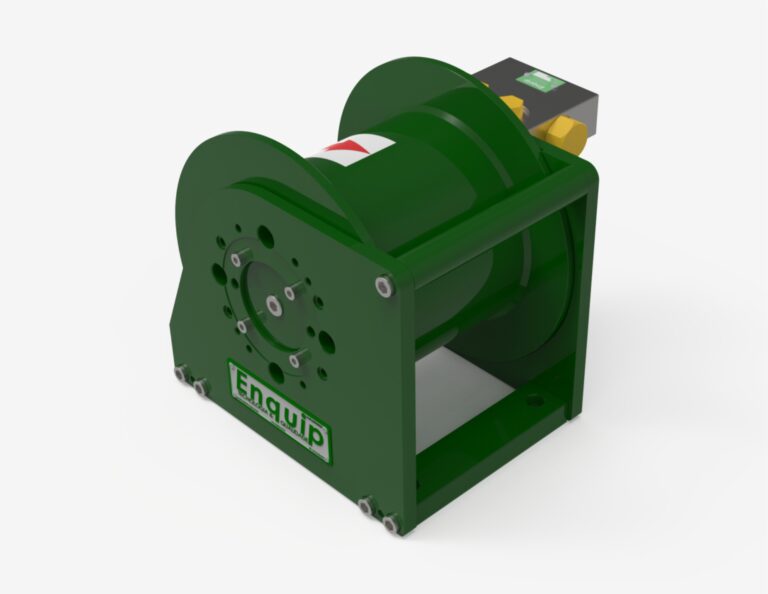

GHL 2030
- Rated Load Capacity: 6,610 Lbf
- Complies with ANSI B30.7 standard;
- Compact and highly durable design;
- Automatic multi-disc brake device normally applied by springs and hydraulically released. Allows the winch to brake the load even in case of hydraulic failures;
- One-way anti-reverse clutch, providing greater safety to the application;
- Highly compact planetary reducer, composed of heat treated alloy steel gears, providing long service life to the equipment;
- Dynamic braking valve, counterbalance valve, allows smooth operation and precise load control;
- Drum mounted on high-performance bearings, maximizing efficiency.
- Self-Propelled Cranes;
- Truck-Mounted Cranes;
- Provision Marine Cranes;
- Drilling Rigs;
- General Construction.
- Different Gear Ratios;
- Grooved Drum.
1Performance with Ø7/16″ wire rope, pressure of 2,540 psi and flow rate of 9 GPM;
2Performance with Ø7/16″ wire rope, pressure of 2,540 psi and flow rate of 8 GPM.
